DMS-20PC-2-GS-C
ActiveVOLTMETER, DMS-20PC SERIES, DC VOLTAGE, -20V TO +20V, 3.5 DIGITS, 4.75 V TO 5.25 V, GREEN
Deep-Dive with AI
Search across all available documentation for this part.
DMS-20PC-2-GS-C
ActiveVOLTMETER, DMS-20PC SERIES, DC VOLTAGE, -20V TO +20V, 3.5 DIGITS, 4.75 V TO 5.25 V, GREEN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DMS-20PC-2-GS-C | DMS-20PC Series |
|---|---|---|
| - | - | |
| Display Characters - Height | 9.4 mm | 9.4 mm |
| Display Characters - Height | 0.37 in | 0.37 in |
| Display Characters - Height | - | 0.401 " |
| Display Characters - Height | - | 10.2 mm |
| Display Type | LED - Green Characters | LED - Red Characters, LED - Green Characters, LED - Yellow Characters |
| Features | - | Bezel Sold Separately |
| Measuring Range | - | -19.99 - 310 VAC |
| Measuring Range | - | -200 - 240 VAC |
| Measuring Type | Voltage | Voltage, Process, Frequency |
| Mounting Type | - | Panel Mount - Bezel |
| Number of Characters Per Row | 3.5 | 3 - 3.5 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | 0 °C | -25 - 0 °C |
| Output Type | Reference | Reference |
| Panel Cutout Dimensions [x] | 33.93 mm | 33.93 - 35.1 mm |
| Panel Cutout Dimensions [y] | 21.29 mm | 21.29 - 22.4 mm |
| Termination Style | PC Pin | Screw Terminal, PC Pin |
| Type | Voltmeter | Voltmeter, Process Meter, Frequency Meter |
| Voltage - Supply | 5 V | 5 V |
| Voltage - Supply | - | Loop Power |
| Voltage - Supply | - | 264 VAC |
| Voltage - Supply | - | 170 VAC |
| Weight | 11.34 g | 10.89 - 28.12 g |
| Weight | 0.025 lb | 0.024 - 0.062 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DMS-20PC Series
LOW-COST, SUBMINIATURE DIGITAL PANEL VOLTMETERS
| Part | Weight | Weight | Display Characters - Height | Display Characters - Height | Measuring Type | Measuring Range [Max] | Measuring Range [Min] | Voltage - Supply | Features | Number of Characters Per Row | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Display Type | Voltage - Supply | Mounting Type | Output Type | Display Characters - Height [z] | Display Characters - Height [z] | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMS-20PC-1-LM-B-C | 28.12 g | 0.062 lb | 9.4 mm | 0.37 in | Voltage | 264 VAC | 85 VAC | Loop Power | Bezel Sold Separately | 3 | -25 °C | 60 °C | Screw Terminal | Voltmeter | 33.93 mm | 21.29 mm | ||||||||
Murata Power Solutions Inc. DMS-20PC-2-LM-C | 28.12 g | 0.062 lb | 9.4 mm | 0.37 in | Voltage | 140 VAC, 310 VAC | 85 VAC, 240 VAC | Loop Power | 3 | -25 °C | 60 °C | Screw Terminal | Voltmeter | 33.93 mm | 21.29 mm | LED - Red Characters | ||||||||
Murata Power Solutions Inc. DMS-20PC-0/5-5GS-C | 17.24 g | 0.038 lb | 9.4 mm | 0.37 in | Process | 5 VDC | 0 V | 3.5 | 0 °C | 60 °C | Screw Terminal | Process Meter | 33.93 mm | 21.29 mm | LED - Green Characters | 5 V | Panel Mount - Bezel | |||||||
Murata Power Solutions Inc. DMS-20PC-2-GS-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. DMS-20PC-1-LM-B-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. DMS-20PC-3-FM-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. DMS-20PC-0-DCM-B-C | ||||||||||||||||||||||||
Murata Power Solutions Inc. DMS-20PC-0-RL-C | 11.34 g | 0.025 lb | 9.4 mm | 0.37 in | Voltage | 0.2 VDC | -200 mV | 3.5 | 0 °C | 60 °C | PC Pin | Voltmeter | 33.93 mm | 21.29 mm | LED - Red Characters | 5 V | Reference | |||||||
Murata Power Solutions Inc. DMS-20PC-2-GS-C | 11.34 g | 0.025 lb | 9.4 mm | 0.37 in | Voltage | 3.5 | 0 °C | 60 °C | PC Pin | Voltmeter | 33.93 mm | 21.29 mm | LED - Green Characters | 5 V | Reference | |||||||||
Murata Power Solutions Inc. DMS-20PC-2-LM-C |
Description
General part information
DMS-20PC Series

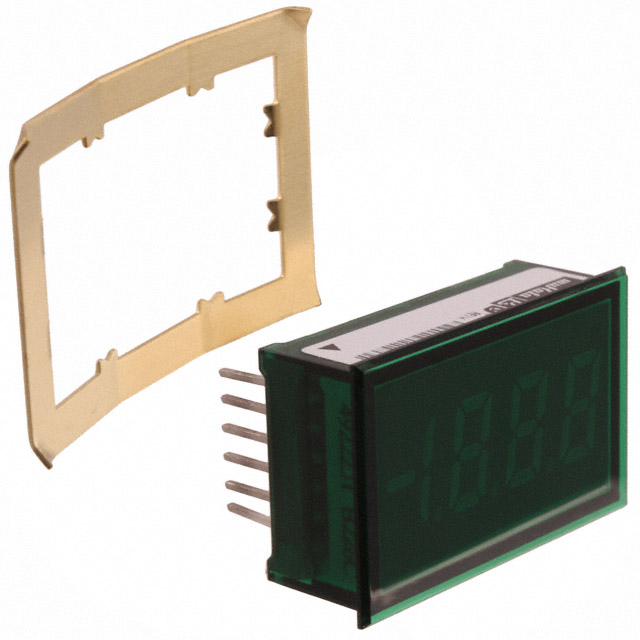

The DMS-20PC-2-GS-C is a 3-1/2-digit standard green LED Display Digital Panel Voltmeter with fully self-contained and is fully functional. It combines a precision A/D converter, a factory-trimmed, highly stable, voltage reference and a large (0.37-inch), easy-to-read LED display in a single package that is only slightly larger than the display itself. Its sub-miniature, epoxy-encapsulated cases incorporate built-in colour filters and bezels are moisture and vibration proof and function well in the harshest environments. Its 12-pin dual-in-line configuration offers component-like plug-in convenience and maximum versatility. This device is fully calibrated at the factory to an accuracy of ±1 count (±0.05% of full scale range) and never requires calibration or adjustment. A DISPLAY ENABLE function permits the display to be disabled for "power-down" operation. It has a DISPLAY TEST function.
