KX15-80K4DE

Active

JAE Electronics

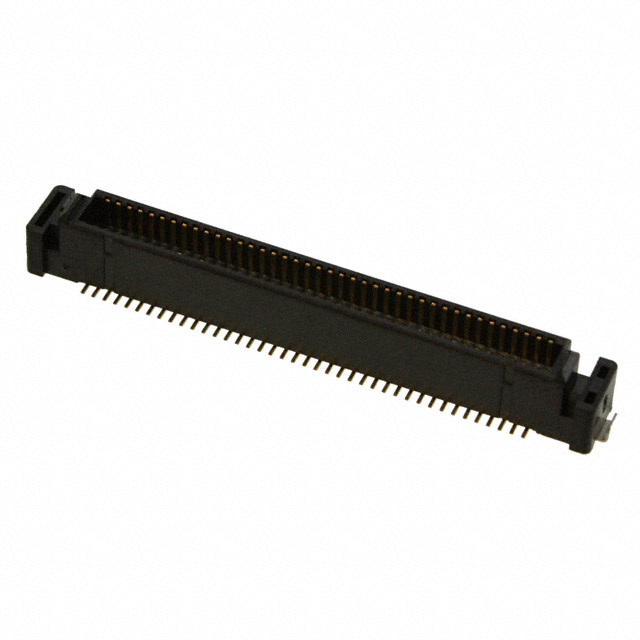

BOARD CONNECTOR, 80 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.031 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, PLUG

Search across all available documentation for this part.

Active

JAE Electronics

BOARD CONNECTOR, 80 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, 0.031 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	KX15-80K4DE

Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	0.226 in
Height Above Board	5.74 mm
Mated Stacking Heights	6 mm, 12 mm, 15 mm, 18 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mounting Type	Features	Number of Positions	Mated Stacking Heights	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Height Above Board	Height Above Board	Height Above Board [z]
JAE Electronics KX15-80K4DE	Surface Mount	Board Guide Solder Retention	80	6 mm 9 mm 12 mm 15 mm 18 mm	2	Gold	0.8 mm	0.031 in	4 Áin	0.1 Ám	0.226 in	5.74 mm
JAE Electronics KX15-80K2DE	Surface Mount	Board Guide Solder Retention	80	4 mm 7 mm 10 mm 13 mm 16 mm	2	Gold	0.8 mm	0.031 in	4 Áin	0.1 Ám	0.148 in	3.75 mm
JAE Electronics KX15-80K3D-E1000E	Surface Mount	Board Guide Solder Retention	80	5 mm 8 mm 11 mm 14 mm 17 mm	2	Gold	0.8 mm	0.031 in	4 Áin	0.1 Ám		4.75 mm	0.187 in
JAE Electronics KX15-80KLDL-E1000E	Surface Mount Right Angle	Board Guide Solder Retention	80		2	Gold	0.8 mm	0.031 in	4 Áin	0.1 Ám	0.226 in	5.74 mm
JAE Electronics KX15-80KLDL-VI-E1000E	Surface Mount Right Angle	Board Guide Solder Retention	80		2	Gold	0.8 mm	0.031 in	4 Áin	0.1 Ám
JAE Electronics KX15-80K3DE	Surface Mount	Board Guide Solder Retention	80	5 mm 8 mm 11 mm 14 mm 17 mm	2	Gold	0.8 mm	0.031 in	4 Áin	0.1 Ám		4.75 mm	0.187 in
JAE Electronics KX15-80KLNL	Surface Mount Right Angle	Board Guide	80		2	Gold	0.8 mm	0.031 in	4 Áin	0.1 Ám	0.226 in	5.74 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	108	$ 5.93

General part information

80 Position Connector Plug, Center Strip Contacts Surface Mount Gold

Technical documentation and resources
