BD-03BFMA-LL7001

Active

Amphenol LTW

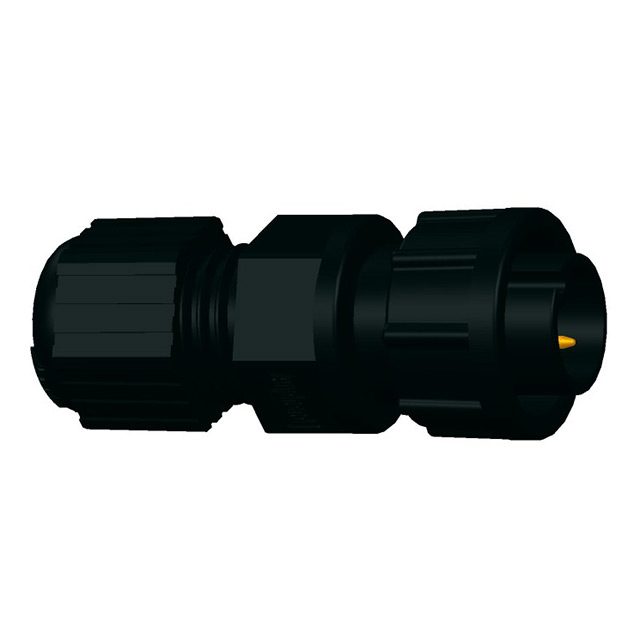

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BD-03BFMA-LL7001

Active

Amphenol LTW

CONN PLUG MALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BD-03BFMA-LL7001

Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	B
Shielding	Unshielded

BD-03BFMA Series

Part	Contact Finish - Mating	Shell Size - Insert	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Backshell Material, Plating	Insert Material	Orientation	Current Rating (Amps)	Shielding	Mounting Type	Color	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Contact Material	Features	Ingress Protection	Primary Material	Fastening Type	Note	Type	Contact Type	Contact Shape	Housing Color	Voltage Rating	Termination	Number of Positions	Material Flammability Rating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Amphenol LTW BD-03BFMA-LL7001	Gold	B	Male Pins Plug	-40 °C	105 ░C	Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Keyed	5 A	Unshielded	Free Hanging (In-Line)	Black	Glass Filled Nylon Polyamide (PA)	4.5 mm 6.5 mm	0.177 in 0.256 in	Copper Alloy	Backshell Coupling Nut	IP67 - Dust Tight Waterproof	Plastic	Bayonet Lock
Amphenol LTW BD-03BFMA-QL8LN0		B	Plug Housing	-40 °C	105 ░C		Thermoplastic	Keyed		Unshielded	Free Hanging (In-Line)						Backshell	IP68 - Dust Tight Waterproof	Plastic		Contacts Not Included	For Male Pins	Crimp	Circular	Black
Amphenol LTW BD-03BFMA-QL8AP0	Gold	B	Male Pins Plug	-40 °C	105 ░C	Thermoplastic	Thermoplastic	Keyed	5 A	Unshielded	Free Hanging (In-Line)	Black				Copper Alloy	Backshell	IP68 - Dust Tight Waterproof	Plastic							300 VDC	Crimp
Amphenol LTW BD-03BFMA-QL8SN0		B	Plug Housing	-40 °C	105 ░C		Thermoplastic	Keyed		Unshielded	Free Hanging (In-Line)						Backshell	IP68 - Dust Tight Waterproof	Plastic		Contacts Not Included	For Male Pins	Crimp	Circular	Black
Amphenol LTW BD-03BFMA-QL8MN0		B	Plug Housing	-40 °C	105 ░C		Thermoplastic	Keyed		Unshielded	Free Hanging (In-Line)						Backshell	IP68 - Dust Tight Waterproof	Plastic		Contacts Not Included	For Male Pins	Crimp	Circular	Black
Amphenol LTW BD-03BFMA-SL6001	Gold	B	Male Pins Plug	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Polyamide (PA) Nylon Glass Filled	Keyed	5 A	Unshielded	Free Hanging (In-Line)	Black	Glass Filled Nylon Polyamide (PA)			Copper Alloy	Backshell Coupling Nut	IP66	Plastic
Amphenol LTW BD-03BFMA-QL8MP0	Gold	B	Male Pins Plug	-40 °C	105 ░C		Polyamide (PA) Nylon Glass Filled	Keyed	5 A	Unshielded	Free Hanging (In-Line)	Black	Glass Filled Nylon Polyamide (PA)			Copper Alloy	Backshell	IP68 - Dust Tight Waterproof	Plastic	Push-Pull						300 VAC	Crimp	3	UL94 V-0	8 mm	6 mm	0.315 in	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.85
		10	$ 8.87
		25	$ 8.35
		50	$ 8.14
		100	$ 7.92
		250	$ 7.07
		500	$ 6.64
		1000	$ 5.87

Description

General part information

BD-03BFMA Series

3 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources
