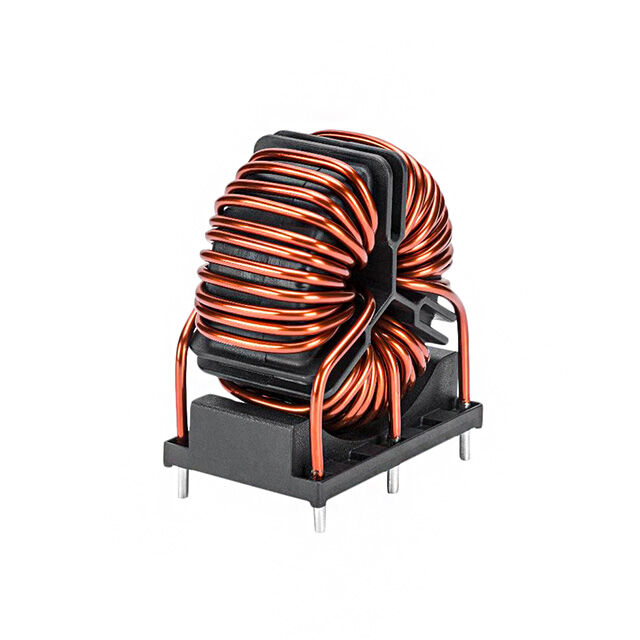

Common Mode Chokes / Filters 20A 2.5mH 3-Wire Vert PCB Mounting
Technical documentation and resources
Parameters and characteristics for this part
| Specification | RT8532-20-2M5 |
|---|---|
| Current Rating (Max) [Max] | 20 A |
| DC Resistance (DCR) (Max) | 7 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 2.362 in |
| Height (Max) [Max] | 60 mm |
| Inductance @ Frequency | 2.5 mH |
| Mounting Type | Through Hole |
| Number of Lines | 3 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6 Leads |
| Package / Case | Vertical |
| Size / Dimension [x] | 2.205 in |
| Size / Dimension [x] | 56 mm |
| Size / Dimension [y] | 1.457 in |
| Size / Dimension [y] | 37 mm |
| Voltage Rating - AC | 600 V |
Common Mode Chokes / Filters 20A 2.5mH 3-Wire Vert PCB Mounting
| Part | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Mounting Type | Current Rating (Max) [Max] | Number of Lines | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Inductance @ Frequency | Filter Type | Height (Max) [Max] | Height (Max) [Max] | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Schaffner EMC Inc. RT8532-20-2M5 | 6 Leads | Vertical | 100 °C | -40 °C | 600 V | Through Hole | 20 A | 3 | 2.205 in | 1.457 in | 37 mm | 56 mm | 2.5 mH | Power Line | 2.362 in | 60 mm | 7 mOhm |
