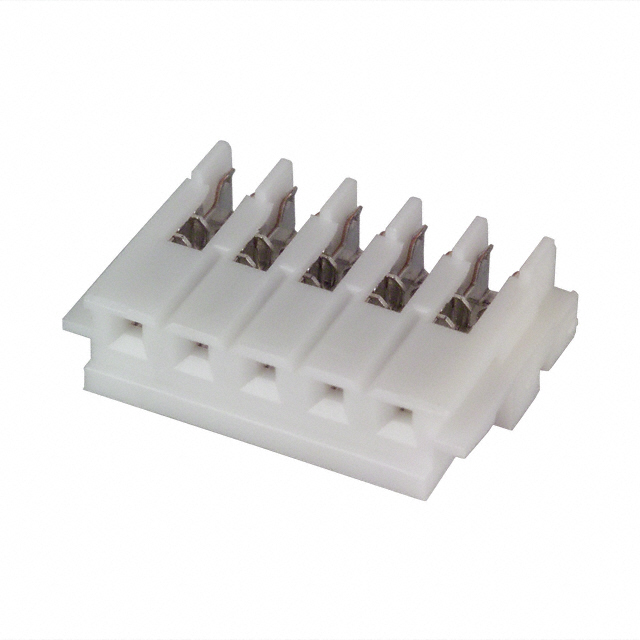

05HR-6S
ActiveJST Sales America Inc.
CONN RCPT 5POS IDC 26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
05HR-6S
ActiveJST Sales America Inc.
CONN RCPT 5POS IDC 26AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 05HR-6S |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Detent Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 1 |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Wire Gauge | 26 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
05HR Series
5 Position Rectangular Receptacle Connector IDC Tin 26 AWG
