IKFW60N60DH3EXKSA1

Active

Infineon Technologies

600 V TRENCHSTOP™ IGBT WITH ANTI-PARALLEL DIODE IN ADVANCED ISOLATION PG-HSIP247-3 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 10 KHZ TO 44 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE AIR CONDITIONING PFC, DRIVES OR GPD.

Deep-Dive with AI

Search across all available documentation for this part.

IKFW60N60DH3EXKSA1

Active

Infineon Technologies

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IKFW60N60DH3EXKSA1

Current - Collector (Ic) (Max) [Max]	53 A
Current - Collector Pulsed (Icm)	150 A
Gate Charge	210 nC
IGBT Type	Trench Field Stop
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Package / Case	TO-247-3
Power - Max [Max]	141 W
Reverse Recovery Time (trr)	68 ns

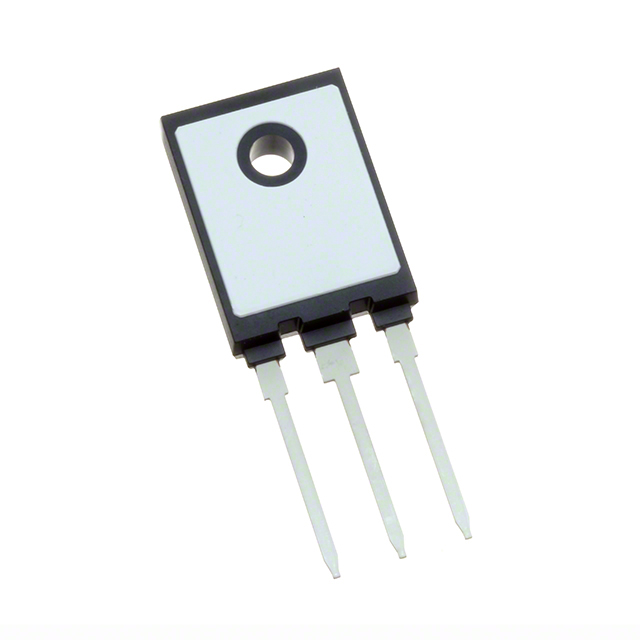

Supplier Device Package	PG-TO247-3-AI
Switching Energy	720 µJ, 1.57 mJ
Td (on/off) @ 25°C	23 ns
Td (on/off) @ 25°C	170 ns
Test Condition	50 A, 15 V, 400 V, 7 Ohm
Vce(on) (Max) @ Vge, Ic	2.7 V
Voltage - Collector Emitter Breakdown (Max) [Max]	600 V

IKFW60 Series

Part	Package / Case	Mounting Type	Current - Collector Pulsed (Icm)	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Test Condition	Switching Energy	Power - Max [Max]	Reverse Recovery Time (trr)	Gate Charge	Vce(on) (Max) @ Vge, Ic	Td (on/off) @ 25°C	Td (on/off) @ 25°C	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]
Infineon Technologies IKFW60N60EH3XKSA1
Infineon Technologies IKFW60N65ES5XKSA1	TO-247-3	Through Hole	200 A	77 A	650 V	-40 C	175 °C	Trench Field Stop	8.2 Ohm 15 V 50 A 400 V	1.23 mJ 550 µJ	138 W	77 ns	120 nC	1.7 V	127 ns	20 ns
Infineon Technologies IKFW60N60DH3EXKSA1	TO-247-3	Through Hole	150 A	53 A		-40 C	175 °C	Trench Field Stop	7 Ohm 15 V 50 A 400 V	1.57 mJ 720 µJ	141 W	68 ns	210 nC	2.7 V	170 ns	23 ns	PG-TO247-3-AI	600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	240	$ 3.43

Description

General part information

IKFW60 Series

High speed switching 600 V, 50 A third generation TRENCHSTOP™ IGBT copacked with Rapid 1 fast and soft antiparallel diode in a TO-247advanced isolationpackage for a best cost efficient solution.

Documents

Technical documentation and resources

No documents available
