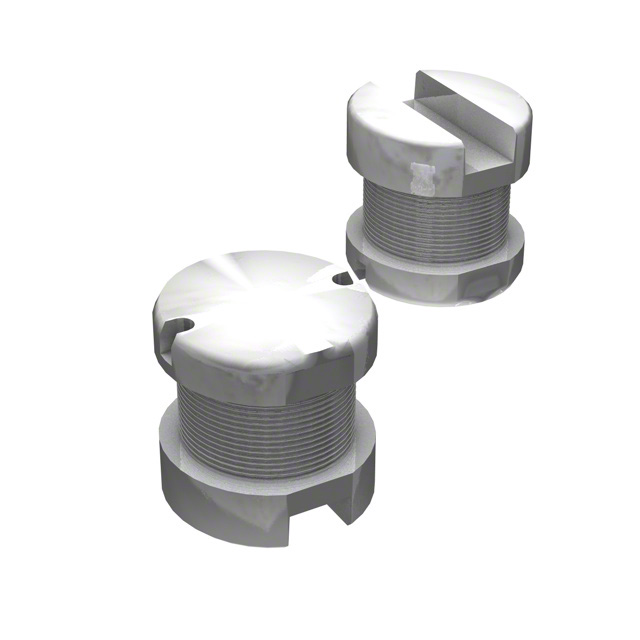

SDR0604-2R2ML

Active

Bourns Inc.

FIXED IND 2.2UH 2.8A 60 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDR0604-2R2ML

Active

Bourns Inc.

FIXED IND 2.2UH 2.8A 60 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDR0604-2R2ML

Current - Saturation (Isat)	5.1 A
Current Rating (Amps)	2.8 A
Frequency - Self Resonant	79 MHz
Height - Seated (Max) [Max] [z]	0.189 "
Height - Seated (Max) [Max] [z]	4.8 mm
Inductance	2.2 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Q @ Freq	7.96 MHz, 33
Shielding	Unshielded
Size / Dimension [x]	0.228 in
Size / Dimension [x]	5.8 mm
Size / Dimension [y]	0.228 in
Size / Dimension [y]	5.8 mm
Tolerance	20 %
Type	Wirewound, Drum Core

SDR0604 Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Current Rating (Amps)	Material - Core	Frequency - Self Resonant	Q @ Freq	DC Resistance (DCR)	Current - Saturation (Isat)	Type	Inductance	Package / Case	Tolerance	DC Resistance (DCR) [Max]
Bourns Inc. SDR0604-181KL	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	0.38 A	Ferrite	6 MHz	20 796 kHz	1.38 Ohm	500 mA	Drum Core Wirewound	180 µH	Nonstandard	10 %
Bourns Inc. SDR0604-471KL	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	0.21 A	Ferrite	3 MHz	25 796 kHz			Drum Core Wirewound		Nonstandard	10 %	3.3 Ohm
Bourns Inc. SDR0604-2R2ML	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	2.8 A	Ferrite	79 MHz	7.96 MHz 33		5.1 A	Drum Core Wirewound	2.2 µH	Nonstandard	20 %
Bourns Inc. SDR0604-5R6ML	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	1.7 A	Ferrite	30 MHz	7.96 MHz 20		2.7 A	Drum Core Wirewound	5.6 µH	Nonstandard	20 %	80 mOhm
Bourns Inc. SDR0604-150YL	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	1.3 A	Ferrite	20 MHz	2.52 MHz 30	140 mOhm	1.6 A	Drum Core Wirewound	15 µH	Nonstandard	15 %
Bourns Inc. SDR0604-121KL	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	480 mA	Ferrite	7 MHz	22 796 kHz	930 mOhm	600 mA	Drum Core Wirewound		Nonstandard	10 %
Bourns Inc. SDR0604-680KL	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	0.62 A	Ferrite	10 MHz	2.52 MHz 22		840 mA	Drum Core Wirewound	68 µH	Nonstandard	10 %	520 mOhm
Bourns Inc. SDR0604-3R3ML	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	2 A	Ferrite	60 MHz	7.96 MHz 22		3.5 A	Drum Core Wirewound	3.3 µH	Nonstandard	20 %	70 mOhm
Bourns Inc. SDR0604-180YL	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	1.25 A	Ferrite	18 MHz	2.52 MHz 30			Drum Core Wirewound	18 µH	Nonstandard	15 %	150 mOhm
Bourns Inc. SDR0604-470KL	0.189 "	4.8 mm	Surface Mount	0.228 in	0.228 in	5.8 mm	5.8 mm	125 °C	-40 °C	Unshielded	0.72 A	Ferrite	12 MHz	2.52 MHz 22		1 A	Drum Core Wirewound	47 µH	Nonstandard	10 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.53
		10	$ 0.46
		25	$ 0.42
		50	$ 0.38
		100	$ 0.34
	Digi-Reel®	1	$ 0.53
		10	$ 0.46
		25	$ 0.42
		50	$ 0.38
		100	$ 0.34
	Tape & Reel (TR)	400	$ 0.32
		800	$ 0.26
		1200	$ 0.24
		2800	$ 0.24
		10000	$ 0.22
		40000	$ 0.21

Description

General part information

SDR0604 Series

2.2 µH Unshielded Drum Core, Wirewound Inductor 2.8 A 60mOhm Max Nonstandard
