1952607

Active

Phoenix Contact

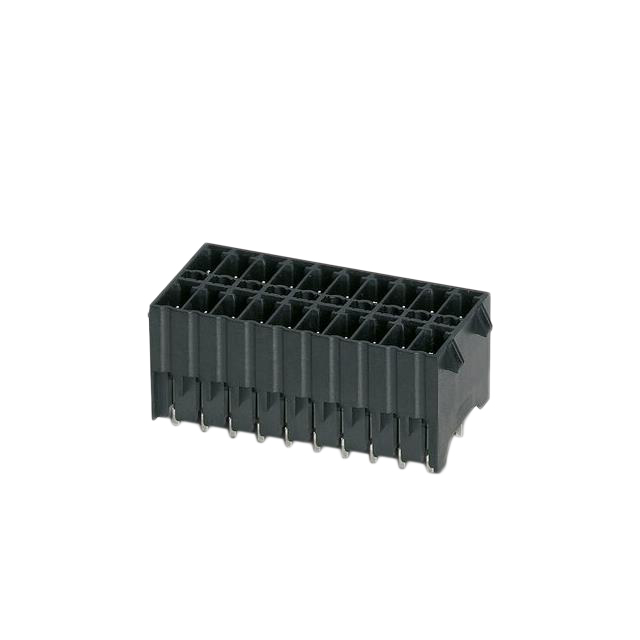

PLUGGABLE TERMINAL BLOCKS 12 POS 3.5MM PITCH THROUGH HOLE HEADER

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 12 POS 3.5MM PITCH THROUGH HOLE HEADER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1952607	MCDNV Series

Color	Black	Black
Contact Mating Finish	Tin	Tin
Contact Tail Length	0.055 in	0.055 - 0.102 in
Contact Tail Length	1.4 mm	1.4 - 2.6 mm
Current - IEC	8 A	8 A
Current - UL	8 A	8 A
Features	Locking Ramp	Locking Ramp
Header Orientation	Vertical	Vertical
Housing Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Insulation Height [z]	0.524 in	0.524 in
Insulation Height [z]	13.3 mm	13.3 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	2	2
Number of Positions	24	24 - 28
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Positions Per Level	12	12 - 14
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	250 V	250 V
Voltage - UL	150 V	150 V

Pluggable Terminal Blocks 12 Pos 3.5mm pitch Through Hole Header

Part	Current - UL	Color	Termination Style	Header Orientation	Number of Levels	Material Flammability Rating	Positions Per Level	Contact Mating Finish	Number of Positions	Contact Tail Length	Contact Tail Length	Current - IEC	Voltage - IEC	Mounting Type	Type	Pitch [x]	Pitch [x]	Features	Voltage - UL	Housing Material	Insulation Height [z]	Insulation Height [z]
Phoenix Contact 1952717	8 A	Black	Solder	Vertical	2	UL94 V-0	14	Tin	28	0.102 in	2.6 mm	8 A	250 V	Through Hole	Header, Male Pins, Shrouded (4 Side)	3.5 mm	0.138 in	Locking Ramp	150 V	Liquid Crystal Polymer (LCP)	0.524 in	13.3 mm
Phoenix Contact 1952607	8 A	Black	Solder	Vertical	2	UL94 V-0	12	Tin	24	0.055 in	1.4 mm	8 A	250 V	Through Hole	Header, Male Pins, Shrouded (4 Side)	3.5 mm	0.138 in	Locking Ramp	150 V	Liquid Crystal Polymer (LCP)	0.524 in	13.3 mm
