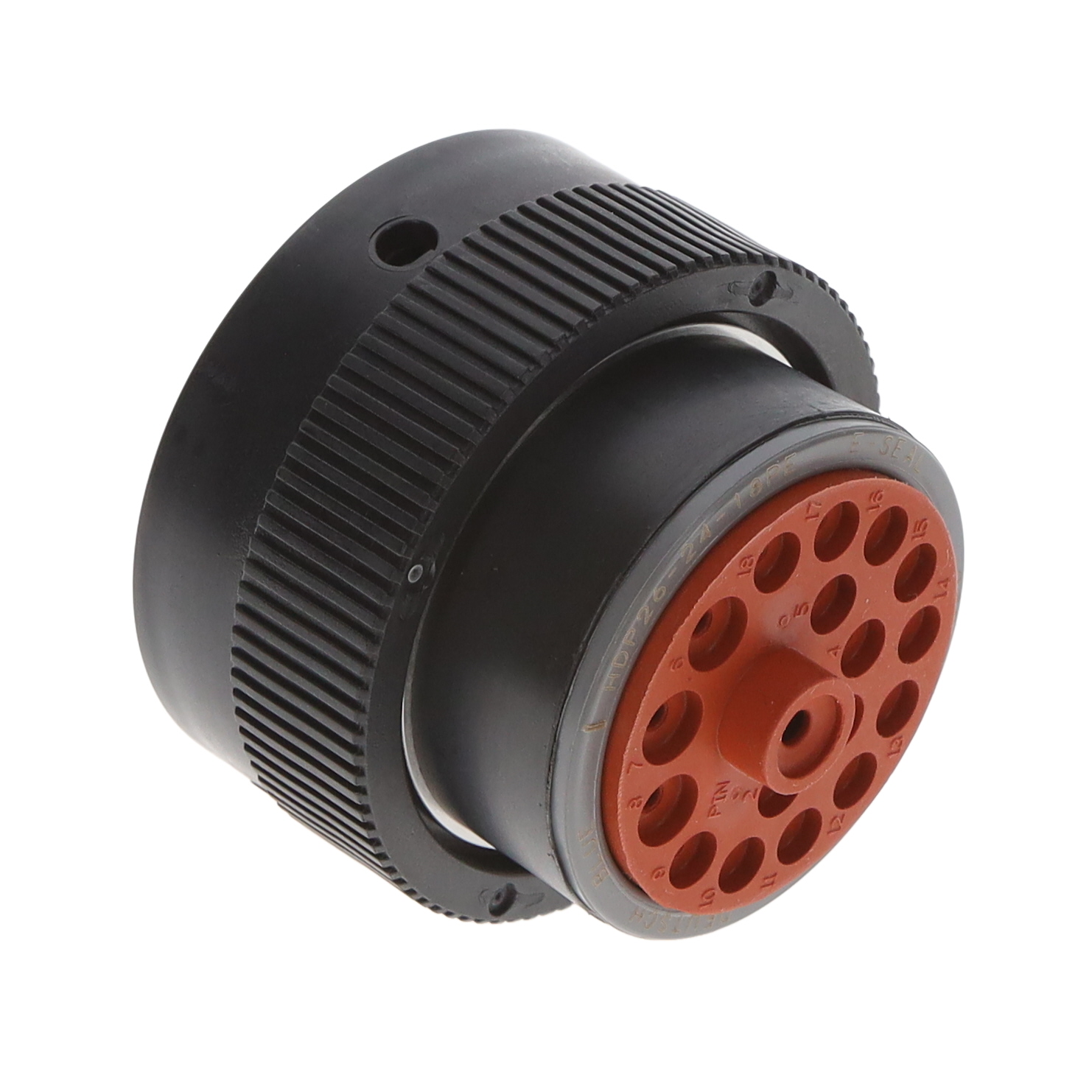

HDP26-24-18PE

HDP26-24-18PE

Active
TE Connectivity AMP Connectors

PLG, 18P, BLK, E, 8/12/16, P

Find alt
HDP26-24-18PE

HDP26-24-18PE

Active
TE Connectivity AMP Connectors

PLG, 18P, BLK, E, 8/12/16, P

Find alt

Description

General part information

DEUTSCH HD Series

18 Position Housing, Housing for Male Terminals, Wire-to-Panel, Sealable, Black, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid

Technical Specifications

Parameters and characteristics for this part

SpecificationHDP26-24-18PE
Connector TypePlug Housing
Contact ShapeCircular
Contact Size8, 16, 12
Contact TypeCrimp
Fastening TypeBayonet Lock
FeaturesCoupling Nut
Housing ColorBlack
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Insert MaterialPA, Nylon, Polyamide
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions18
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialGlass Filled, Nylon 6/6, Polyamide (PA66)
Shell Size - Insert Length24 mm
Shell Size - Insert Width18 mm
ShieldingUnshielded
TypeFor Male Pins
