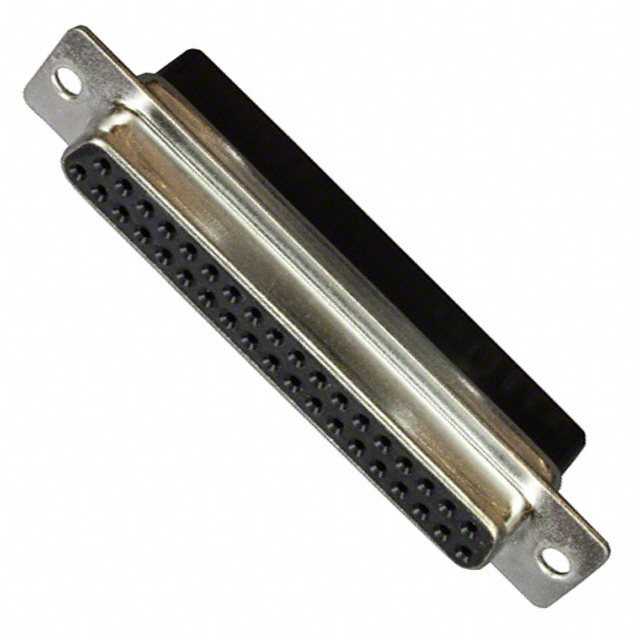

L177-RR-C-37-S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING RCPT 37POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
L177-RR-C-37-S
ActiveAmphenol ICC (Commercial Products)
CONN D-SUB HOUSING RCPT 37POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | L177-RR-C-37-S |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish Thickness | 2.54 µm |
| Shell Finish Thickness | 100 µin |
| Shell Size, Connector Layout | 4 (DC, C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.69 | |
| 40 | $ 1.38 | |||
| 120 | $ 1.31 | |||
| 1000 | $ 0.94 | |||
| 5000 | $ 0.83 | |||
| 10000 | $ 0.81 | |||
Description
General part information
L177RRC37 Series
Receptacle for Female Contacts Housing D-Sub Connector 37 Position
