Description
General part information
5120528 Series

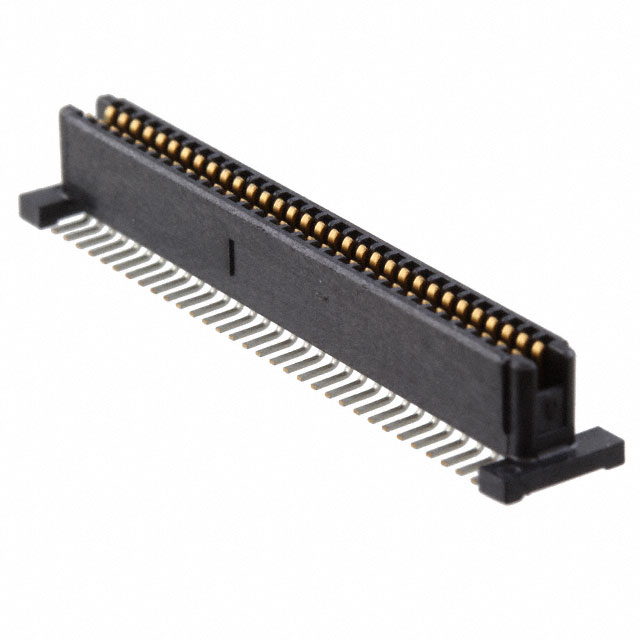

PCB Mount Receptacle, Vertical, Board-to-Board, 64 Position, 1 mm [.039 in] Centerline, Gold (Au), Surface Mount, Signal, Black, Free Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 5120528-1 |
|---|---|
| Connector Type | Outer Shroud Contacts, Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Height Above Board | 0.211 in |
| Mated Stacking Height Options | 9mm, 8mm, 10mm |
| Mounting Type | Surface Mount |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch | 0.039 in |
