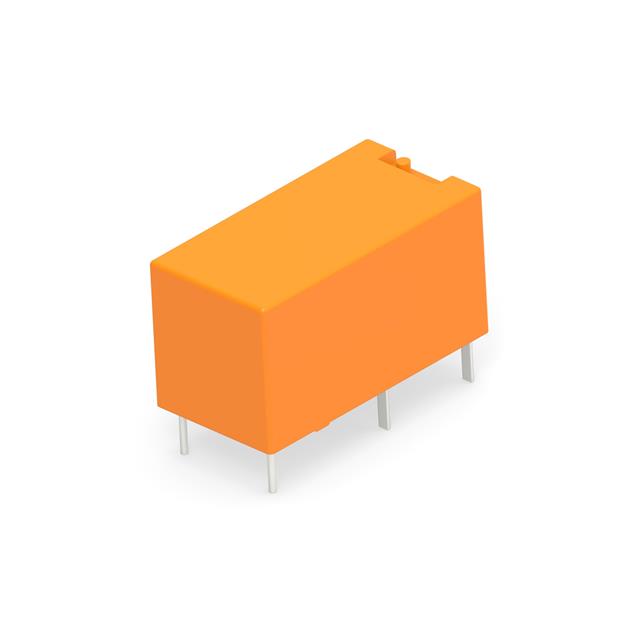

2-1416010-3

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 6A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2-1416010-3

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 6A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1416010-3

Approval Agency	cURus, VDE
Coil Current	40 mA
Coil Insulation	Class F
Coil Resistance	125 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Load - Max Switching [Max]	2400 VA
Mounting Type	Through Hole
Must Operate Voltage	3.5 VDC
Must Release Voltage	0.5 VDC
Operate Time	10 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	400 VAC
Termination Style	PC Pin

RE0340 Series

Part	Must Operate Voltage	Coil Resistance	Load - Max Switching [Max]	Relay Type	Contact Rating (Current)	Approval Agency	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Mounting Type	Coil Voltage	Coil Type	Coil Insulation	Operate Time	Contact Material	Release Time	Seal Rating	Contact Form	Switching Voltage [Max]	Must Release Voltage
TE Connectivity Potter & Brumfield Relays RE034048	33.6 VDC	11.52 kOhms	2400 VA	General Purpose	6 A	cURus VDE	PC Pin	-40 °C	70 °C	4.2 mA	Through Hole	48 VDC	Non Latching	Class F	10 ms	Silver Nickel (AgNi)	5 ms	Sealed - Fully	SPST-NO (1 Form A)	400 VAC	4.8 VDC
TE Connectivity Potter & Brumfield Relays RE034005K	3.5 VDC	125 Ohms	2400 VA	General Purpose	6 A	cURus VDE	PC Pin	-40 °C	70 °C	40 mA	Through Hole	5 VDC	Non Latching	Class F	10 ms	Silver Nickel (AgNi)	5 ms	Sealed - Fully	SPST-NO (1 Form A)	400 VAC	0.5 VDC
TE Connectivity Potter & Brumfield Relays RE034018	12.6 VDC	1.62 kOhms	2400 VA	General Purpose	6 A	cURus VDE	PC Pin	-40 °C	70 °C	11.1 mA	Through Hole	18 VDC	Non Latching	Class F	10 ms	Silver Nickel (AgNi)	5 ms	Sealed - Fully	SPST-NO (1 Form A)	400 VAC	1.8 VDC
TE Connectivity Potter & Brumfield Relays 2-1416010-3	3.5 VDC	125 Ohms	2400 VA	General Purpose	6 A	cURus VDE	PC Pin	-40 °C	70 °C	40 mA	Through Hole	5 VDC	Non Latching	Class F	10 ms	Silver Nickel (AgNi)	5 ms	Sealed - Fully	SPST-NO (1 Form A)	400 VAC	0.5 VDC
TE Connectivity Potter & Brumfield Relays RE034009	6.3 VDC	405 Ohms	2400 VA	General Purpose	6 A	cURus VDE	PC Pin	-40 °C	70 °C	22.2 mA	Through Hole	9 VDC	Non Latching	Class F	10 ms	Silver Nickel (AgNi)	5 ms	Sealed - Fully	SPST-NO (1 Form A)	400 VAC	0.9 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.44
		10	$ 3.23
		25	$ 2.87
		50	$ 2.73
		100	$ 2.58
		250	$ 2.29
		500	$ 2.15
		1000	$ 2.01
		5000	$ 1.94

Description

General part information

RE0340 Series

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
