STANDARD CIRCULAR CONNECTOR RECEPTACLE, SQUARE FLANGE, 7 POSITION, MALE, SHELL SIZE 14, AND END CAP WITH REDUCED DIAMETER INDIVIDUAL WIRE SEALS, RANGE 14 - 24AWG

Find alt

Alpha

RT00147PNHECR

Active

McGill Microwave Systems

STANDARD CIRCULAR CONNECTOR RECEPTACLE, SQUARE FLANGE, 7 POSITION, MALE, SHELL SIZE 14, AND END CAP WITH REDUCED DIAMETER INDIVIDUAL WIRE SEALS, RANGE 14 - 24AWG

Find alt

Alpha

Description Series Pricing CAD Documents

Description

General part information

RT00147 Series

Position Circular Connector

RT00147 Series

Part	Housing Color	Note	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Insert Material	Shell Size - Insert Width	Shell Size - Insert Length	Shell Finish	Material Flammability Rating	Mounting Type	Shielding	Contact Size	Mounting Feature	Shell Material	Primary Material	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Features	Fastening Type	Connector Type	Contact Type	Orientation	Type	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)	Termination	Color	Current Rating	Applications

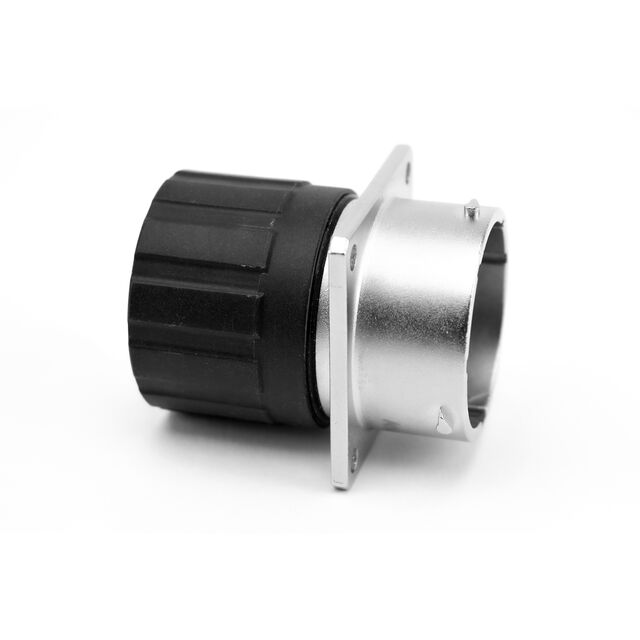

McGill Microwave Systems RT00147SNHECR	Silver	Contacts Not Included	Dust Tight Waterproof	IP67	7	Thermoplastic	7 mm	14 mm	Nickel	UL94 V-0	Panel Mount	Shielded	16 S	Flange	Zinc Alloy	Metal	Circular	-40 °C	105 °C	Cap (Cover)	Bayonet Lock	Receptacle Housing	Crimp	N (Normal)	For Female Sockets
McGill Microwave Systems RT00147SNHEC03R	Silver	Contacts Not Included	Dust Tight Waterproof	IP67	7	Thermoplastic	7 mm	14 mm	Nickel	UL94 V-0	Panel Mount	Shielded	16 S	Flange	Zinc Alloy		Circular	-40 °C	125 °C	Backshell	Bayonet Lock	Receptacle Housing	Crimp	N (Normal)	For Female Sockets
McGill Microwave Systems RT00147SNH	Silver	Contacts Not Included	Dust Tight Waterproof	IP67	7	Thermoplastic	7 mm	14 mm	Nickel	UL94 V-0	Panel Mount	Shielded	16 S	Flange	Zinc Alloy		Circular	-40 °C	105 °C		Bayonet Lock	Receptacle Housing	Crimp	N (Normal)	For Female Sockets

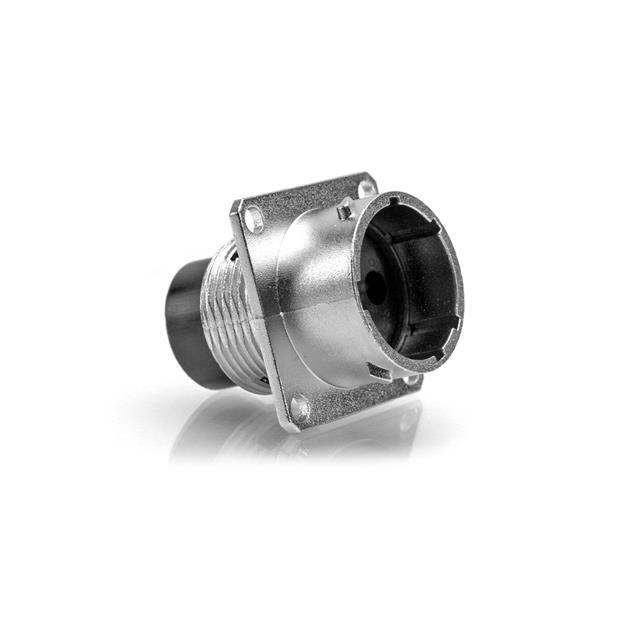

McGill Microwave Systems RT00147PNH03	Silver	Contacts Not Included	Dust Tight Waterproof	IP67	7	Thermoplastic	7 mm	14 mm	Nickel	UL94 V-0	Panel Mount	Shielded	16 S	Flange	Zinc Alloy		Circular	-40 °C	125 °C		Bayonet Lock	Receptacle Housing	Crimp	N (Normal)	For Male Pins

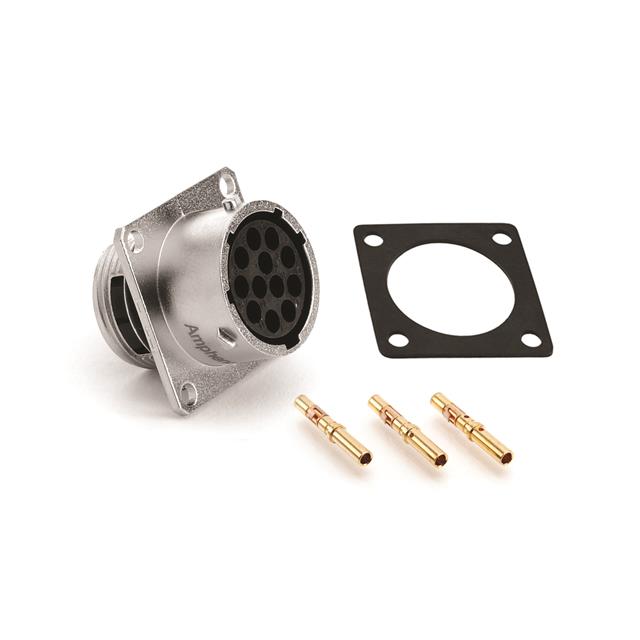

McGill Microwave Systems RT00147SNH-K			Dust Tight Waterproof	IP67	7	Thermoplastic	7 mm	14 mm	Nickel	UL94 V-0	Panel Mount	Shielded		Flange	Zinc Alloy			-40 °C	105 °C		Bayonet Lock	Female Sockets Receptacle		N (Normal)		Gold	500 V	DC	Crimp	Silver	13 A	Aerospace Automation Industrial Telecom Transportation
McGill Microwave Systems RT00147PNHECR
