FVG.00.160.DN

Active

LEMO

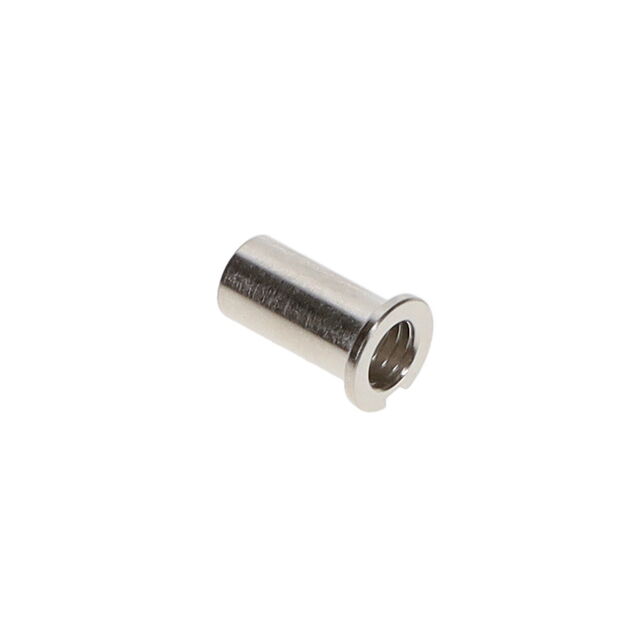

CRIMP FERRULE FOR FVG.00.

Search across all available documentation for this part.

Active

LEMO

CRIMP FERRULE FOR FVG.00.

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Crimp Ferrule

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	FVG.00.160.DN	FVG.00 Series

	-	-
Accessory Type	Crimp Ferrule	Crimp Ferrule
Backshell Material, Plating	-	Brass, Chrome
Body Finish	-	Nickel
Body Material	-	Brass
Cable Opening	-	0.087 in
Cable Opening	-	2.7 mm
Cable Opening	-	2.2 mm
Cable Opening	-	0.106 in
Center Contact Material	-	Brass
Center Contact Plating	-	Gold
Color	-	Silver
Connector Style	-	NIM-CAMAC CD/N 549
Connector Type	-	Male Pin, Plug, Male Pins
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	1 µm
Contact Finish Thickness - Mating	-	39.4 µin
Contact Material	-	Brass
Contact Termination	-	Crimp
Current Rating (Amps)	-	3 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	-	Push-Pull
Features	-	Backshell
Housing Color	-	Silver
Impedance	-	50 Ohms
Ingress Protection	-	IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mating Cycles	-	5000
Mounting Type	-	Free Hanging (In-Line)
Number of Ports	-	1
Operating Temperature	-	-55 °C
Operating Temperature	-	250 - 260 ░C
Orientation	-	G
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	303
Shield Termination	-	Clamp
Shielding	-	Shielded
Voltage Rating	-	700 VDC

CONN NIMCAMA PLG STR 50OHM CRIMP

Part	Center Contact Plating	Center Contact Material	Shield Termination	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Connector Style	Mounting Type	Body Material	Voltage Rating	Mating Cycles	Ingress Protection	Fastening Type	Number of Ports	Body Finish	Connector Type	Housing Color	Contact Termination	Shell Material	Orientation	Primary Material	Features	Backshell Material, Plating	Current Rating (Amps)	Insert Material	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shell Size - Insert	Contact Finish - Mating	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shell Finish	Color	Accessory Type
LEMO FVG.00.250.NTC	Gold	Brass	Clamp	Polytetrafluoroethylene (PTFE)	-55 °C	260 ░C	50 Ohms	NIM-CAMAC CD/N 549	Free Hanging (In-Line)	Brass	700 VDC	5000	IP50	Push-Pull	1	Nickel	Male Pin, Plug	Silver	Crimp
LEMO FVG.00.303.CLAD27					-55 °C	250 °C			Free Hanging (In-Line)				IP50	Push-Pull			Male Pins, Plug			Brass	G	Metal	Backshell	Brass, Chrome	3 A	Polyetheretherketone (PEEK)	Brass	1 µm	39.4 µin	UL94 V-0	303	Gold	Shielded	0.087 in	2.7 mm	2.2 mm	0.106 in	Chrome	Silver
LEMO FVG.00.140.LN
LEMO FVG.00.160.DN																																								Crimp Ferrule
