Specification	M85049/90-19Z02

Cable Exit Angle	90 °
Cable Opening	0.64 in
Color	Black
Diameter - Outside	1.52 in
Features	Self Locking
Material	Aluminum Alloy
Plating	Zinc Cobalt
Shell Size - Insert	F, 19
Shielding	Unshielded
Type	Banding, Backshell

M85049/90 Series

Part	Shell Size - Insert	Cable Opening	Diameter - Outside	Shielding	Plating	Cable Exit Angle	Features	Color	Material	Type	For Use With/Related Products
McGill Microwave Systems M85049/90-15Z03	15 D	0.57 in	1.28 in	Unshielded	Zinc Cobalt	90 °	Self Locking	Black	Aluminum Alloy	Backshell Banding
McGill Microwave Systems M85049/90-17Z02	17 E	0.51 in	1.41 in	Unshielded	Zinc Cobalt	90 °	Self Locking	Black	Aluminum Alloy	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/90-13W02	13 C	0.32 in	1.156 in	Unshielded	Cadmium	90 °	Self Locking	Olive Drab	Aluminum Alloy	Backshell Banding
McGill Microwave Systems M85049/90-19Z02	19 F	0.64 in	1.52 in	Unshielded	Zinc Cobalt	90 °	Self Locking	Black	Aluminum Alloy	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/90-23N03	23 H	0.95 in	1.766 in	Unshielded	Electroless Nickel	90 °	Self Locking	Silver	Aluminum Alloy	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/90-13W02	13 C	0.32 in	1.156 in	Unshielded	Cadmium	90 °	Self Locking	Olive Drab	Aluminum Alloy	Backshell Banding	IV MIL-DTL-38999 Series III

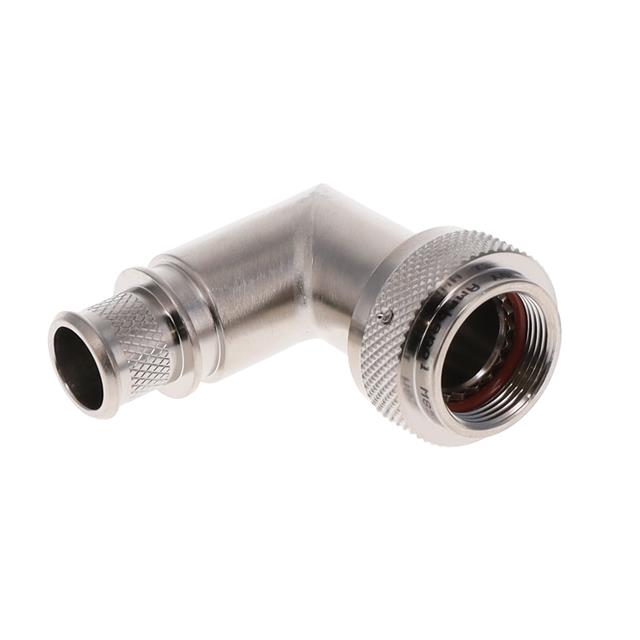

McGill Microwave Systems M85049/90-13N03	13 C	0.45 in	1.156 in	Unshielded	Electroless Nickel	90 °	Self Locking	Silver	Aluminum Alloy	Backshell Banding

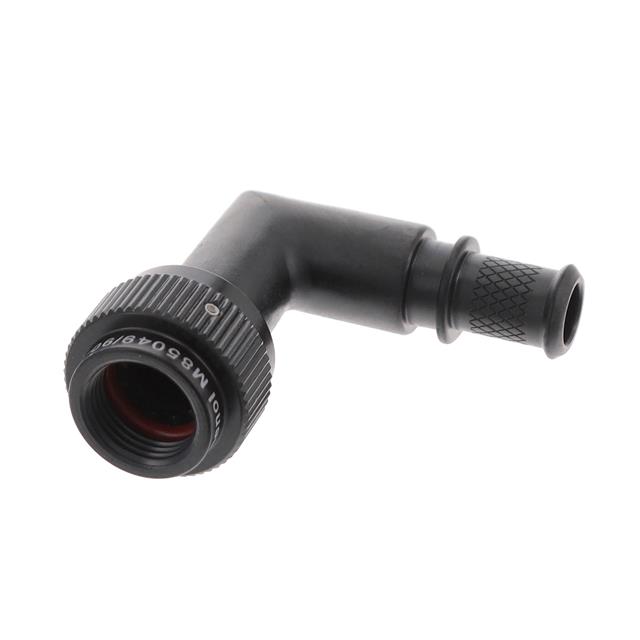

McGill Microwave Systems M85049/90-9Z03	9 A	0.26 in	0.86 in	Unshielded	Zinc Cobalt	90 °	Self Locking	Black	Aluminum Alloy	Backshell Banding
McGill Microwave Systems M85049/90-11W03	11 B	0.32 in	0.986 in	Unshielded	Cadmium	90 °	Self Locking	Olive Drab	Aluminum Alloy	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/90-15N02	15 D	0.45 in	1.281 in	Unshielded	Electroless Nickel	90 °	Self Locking	Silver	Aluminum Alloy	Backshell Banding	IV MIL-DTL-38999 Series III

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M85049/90-19Z02 | Datasheet

Datasheet
