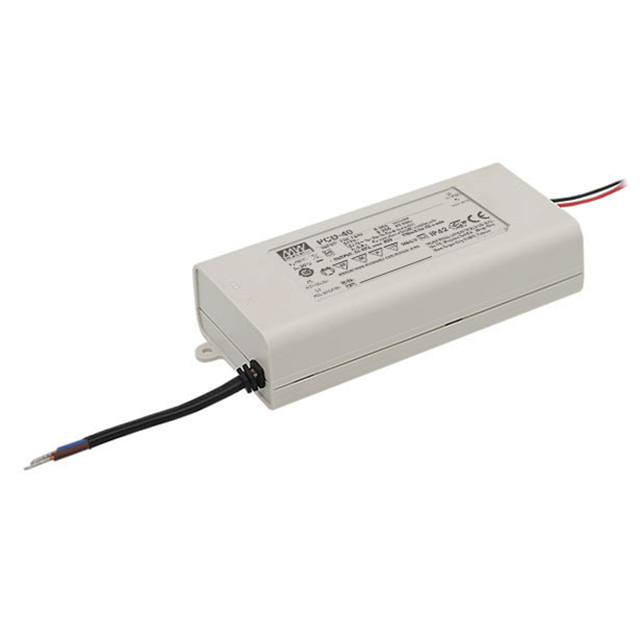

PCD-40-1750B
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 13-23V 1.75A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCD-40-1750B
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 13-23V 1.75A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCD-40-1750B |
|---|---|
| Approval Agency | CB, CE, ENEC |
| Current - Output (Max) [Max] | 1.75 A |
| Dimming | TRIAC |
| Efficiency | 85 % |
| Features | OTP, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 40 W |
| Ratings | IP42 |
| Size / Dimension [x] | 5.04 " |
| Size / Dimension [x] | 128 mm |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [z] | 1.24 " |
| Size / Dimension [z] | 31.5 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 295 VAC |
| Voltage - Input (Min) [Min] | 180 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 23 V |
| Voltage - Output [Min] | 13 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.01 | |
| 5 | $ 21.33 | |||
| 10 | $ 20.64 | |||
| 25 | $ 19.77 | |||
Description
General part information
PCD-40 Series
1.75A 13 ~ 23V Constant Current LED Driver AC DC Converter Topology 1 Output
