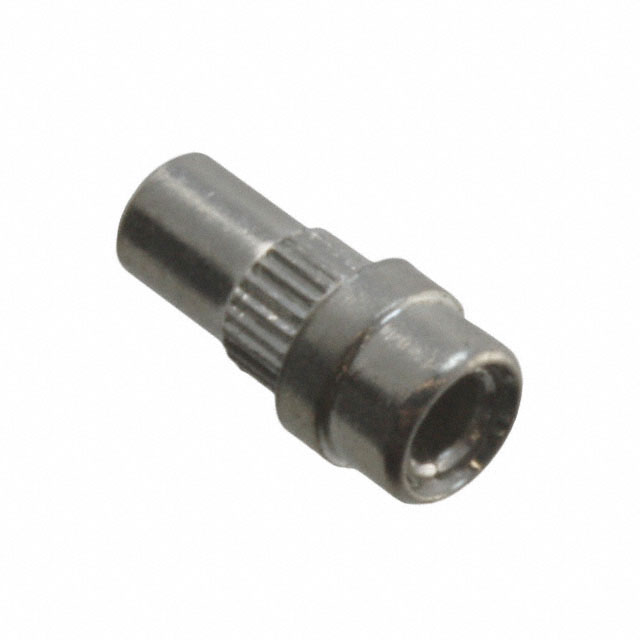

CONN PIN RCPT .032-.046 KNURL

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .032-.046 KNURL

Technical Specifications

Parameters and characteristics for this part

Specification	0357-0-15-01-34-01-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Tin-Lead
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter	2.62 mm
Flange Diameter [diameter]	0.103 in
Length - Overall [x]	5.59 mm
Length - Overall [x]	0.22 in
Mounting Hole Diameter [diameter]	1.98 mm
Mounting Hole Diameter [diameter]	0.078 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Tail Type	No Tail
Termination	Knurled, Press-Fit

Part	Termination	Flange Diameter [diameter]	Flange Diameter	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type
Mill-Max Manufacturing Corp. 0357-0-15-80-34-27-10-0	Knurled Press-Fit	0.103 in	2.62 mm	-55 °C	125 °C	Beryllium Copper	1.98 mm	0.078 in	Gold	0.81 mm 1.17 mm	0.046 in	0.032 "	5.59 mm	0.22 in	0.76 Ám	30 Áin	1.63 mm	0.064 in	No Tail
Mill-Max Manufacturing Corp. 0357-0-15-01-34-01-10-0	Knurled Press-Fit	0.103 in	2.62 mm	-55 °C	125 °C	Beryllium Copper	1.98 mm	0.078 in	Tin-Lead	0.81 mm 1.17 mm	0.046 in	0.032 "	5.59 mm	0.22 in	5.08 Ám	200 Áin	1.63 mm	0.064 in	No Tail
Mill-Max Manufacturing Corp. 0357-0-15-01-34-27-10-0	Knurled Press-Fit	0.103 in	2.62 mm	-55 °C	125 °C	Beryllium Copper	1.98 mm	0.078 in	Gold	0.81 mm 1.17 mm	0.046 in	0.032 "	5.59 mm	0.22 in	0.76 Ám	30 Áin	1.63 mm	0.064 in	No Tail
Mill-Max Manufacturing Corp. 0357-0-15-15-34-14-10-0	Knurled Press-Fit	0.103 in	2.62 mm	-55 °C	125 °C	Beryllium Copper	1.98 mm	0.078 in	Gold	0.81 mm 1.17 mm	0.046 in	0.032 "	5.59 mm	0.22 in	0.25 Ám	10 Áin	1.63 mm	0.064 in	No Tail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.72

General part information

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Press-Fit, Knurled
