TMC4210-I
ActiveAnalog Devices Inc./Maxim Integrated

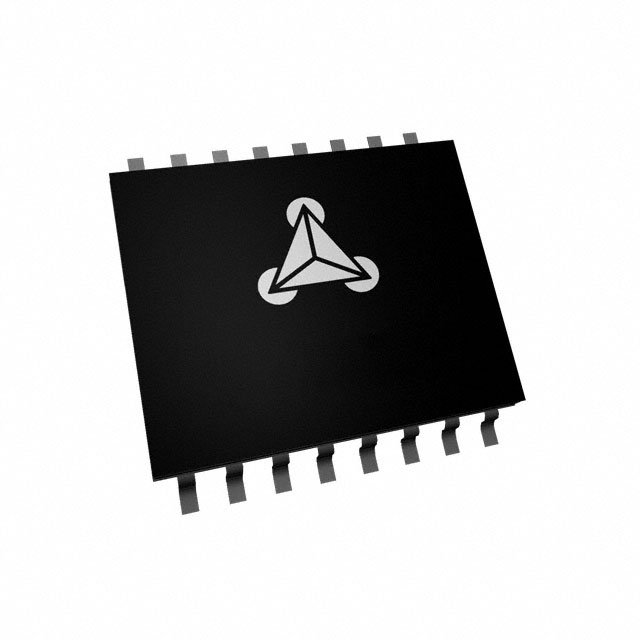

IC MTR DRV BIPOLAR 3.3-5V 16SSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMC4210-I
ActiveAnalog Devices Inc./Maxim Integrated
IC MTR DRV BIPOLAR 3.3-5V 16SSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TMC4210-I | TMC4210 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Function | Controller - Commutation, Direction Management | Controller - Commutation, Direction Management |
| Interface | SPI | SPI |
| Motor Type - Stepper | Bipolar | Bipolar |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 °C | 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Step/Direction | Step/Direction |
| Package / Case | 0.154 in | 0.154 in |
| Package / Case | 16-SSOP | 16-SSOP |
| Package / Case | 3.9 mm | 3.9 mm |
| Step Resolution | >256 | >256 |
| Supplier Device Package | 16-SSOP | 16-SSOP |
| Technology | CMOS | CMOS |
| Voltage - Supply [Max] | 5 V | 5 V |
| Voltage - Supply [Min] | 3.3 V | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.53 | |
| 10 | $ 6.60 | |||
| 25 | $ 5.85 | |||
| 100 | $ 5.00 | |||
| 250 | $ 4.59 | |||
| 500 | $ 4.34 | |||
| 1000 | $ 4.14 | |||
TMC4210 Series
IC MTR DRV BIPOLAR 3.3-5V 16SSOP
| Part | Package / Case | Package / Case | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Output Configuration | Interface | Mounting Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Step Resolution | Function | Supplier Device Package | Technology | Motor Type - Stepper | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated TMC4210-I-T | 0.154 in | 16-SSOP | 3.9 mm | 105 °C | -40 °C | Step/Direction | SPI | Surface Mount | 5 V | 3.3 V | >256 | Controller - Commutation, Direction Management | 16-SSOP | CMOS | Bipolar | General Purpose |
Analog Devices Inc./Maxim Integrated TMC4210-I | 0.154 in | 16-SSOP | 3.9 mm | 105 °C | -40 °C | Step/Direction | SPI | Surface Mount | 5 V | 3.3 V | >256 | Controller - Commutation, Direction Management | 16-SSOP | CMOS | Bipolar | General Purpose |
Description
General part information
TMC4210 Series
Bipolar Motor Driver CMOS SPI 16-SSOP
