AXT630124

Active

Panasonic Electric Works

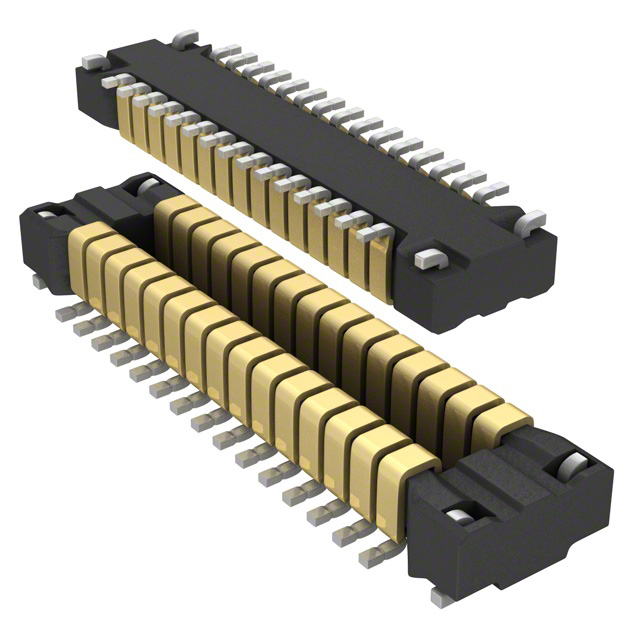

CONN HDR 30POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT630124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Number of Rows	Mated Stacking Heights	Features	Pitch [x]	Pitch [x]	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish	Connector Type
Panasonic Electric Works AXT630124	Surface Mount	2	1 mm	Solder Retention	0.016 in	0.4 mm	30	0.84 mm	0.033 "	Gold	Header Center Strip Contacts
Panasonic Electric Works AXT630224	Surface Mount	2	1.2 mm	Solder Retention	0.016 in	0.4 mm	30	1 mm	0.039 in	Gold	Header Center Strip Contacts
