Specification	AML24EBA2CA06

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL, CE, VDE
Circuit	DPDT
Current Rating	2 A, 3 A
Electrical Life (Cycles)	25000
Mechanical Life (Cycles)	25000 Cycles
Mounting Type	Panel Mount, Snap-In
Panel Cutout Length	28.98 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	19.05 mm
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On-Mom
Termination Style	Quick Connect, Solder
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

AML24EB Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Quick Connect Size (0.110")	Termination Style	Actuator Type	Voltage Rating - AC	Switch Function	Current Rating	Actuator Marking	Voltage Rating - DC	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Mounting Type	Circuit	Approval Agency
Honeywell Sensing and Productivity Solutions AML24EBA2AA06	25000 Cycles	25000	0.11 in	Quick Connect Solder	Actuator Arm Cap Required	125 V	On-Off-Mom	2 A 3 A	Varies by Cap	24 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	SPDT

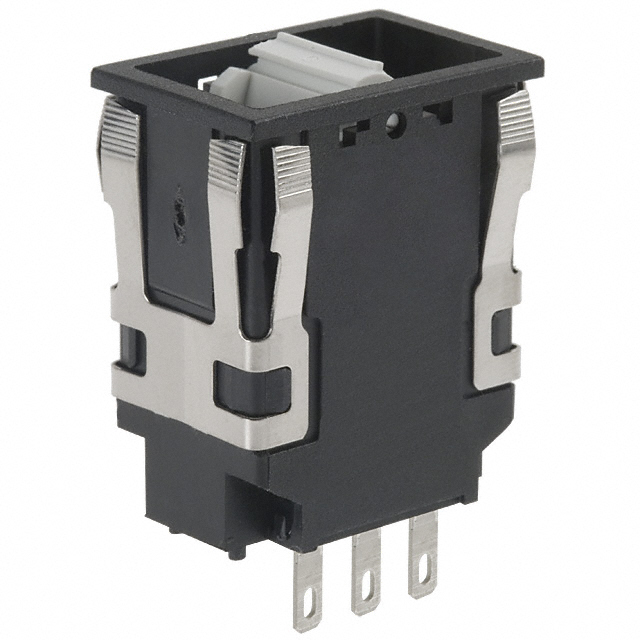

Honeywell Sensing and Productivity Solutions AML24EBA2AA01	25000 Cycles	25000	0.11 in	Quick Connect Solder	Actuator Arm Cap Required	125 V	On-On	2 A 3 A	Varies by Cap	24 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	SPDT	CE CSA UL VDE
Honeywell Sensing and Productivity Solutions AML24EBA2CA06	25000 Cycles	25000	0.11 in	Quick Connect Solder	Actuator Arm Cap Required	125 V	On-On-Mom	2 A 3 A	Varies by Cap	24 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	DPDT	CE CSA UL VDE
Honeywell Sensing and Productivity Solutions AML24EBA3AA03	25000 Cycles	25000		PC Pin	Actuator Arm Cap Required	125 V	On-Mom	2 A 3 A	Varies by Cap	24 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	SPDT	CE CSA UL VDE
Honeywell Sensing and Productivity Solutions AML24EBA2AA02	25000 Cycles	25000	0.11 in	Quick Connect Solder	Actuator Arm Cap Required	125 V	On-Mom	2 A 3 A	Varies by Cap	24 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	SPDT
Honeywell Sensing and Productivity Solutions AML24EBA2DC01	25000 Cycles	25000	0.11 in	Quick Connect Solder	Actuator Arm Cap Required	125 V	On-On	100 mA	Varies by Cap	125 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	4PDT	CE CSA UL VDE
Honeywell Sensing and Productivity Solutions AML24EBA3AA05	25000 Cycles	25000		PC Pin	Actuator Arm Cap Required	125 V	Mom-Off-Mom	2 A 3 A	Varies by Cap	24 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	SPDT	CE CSA UL VDE
Honeywell Sensing and Productivity Solutions AML24EBA2BC04	25000 Cycles	25000	0.11 in	Quick Connect Solder	Actuator Arm Cap Required	125 V	On-Off-On	100 mA	Varies by Cap	125 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	DPDT	CE CSA UL VDE
Honeywell Sensing and Productivity Solutions AML24EBA2CC05	25000 Cycles	25000	0.11 in	Quick Connect Solder	Actuator Arm Cap Required	125 V	Mom-On-Mom	2 A 3 A	Varies by Cap	24 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	4PDT	CE CSA UL VDE
Honeywell Sensing and Productivity Solutions AML24EBA3BC01	25000 Cycles	25000		PC Pin	Actuator Arm Cap Required	125 V	On-On	100 mA	Varies by Cap	125 V	19.05 mm	Rectangular	28.98 mm	Panel Mount Snap-In	DPDT	CE CSA UL VDE
