MAXM17544EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated

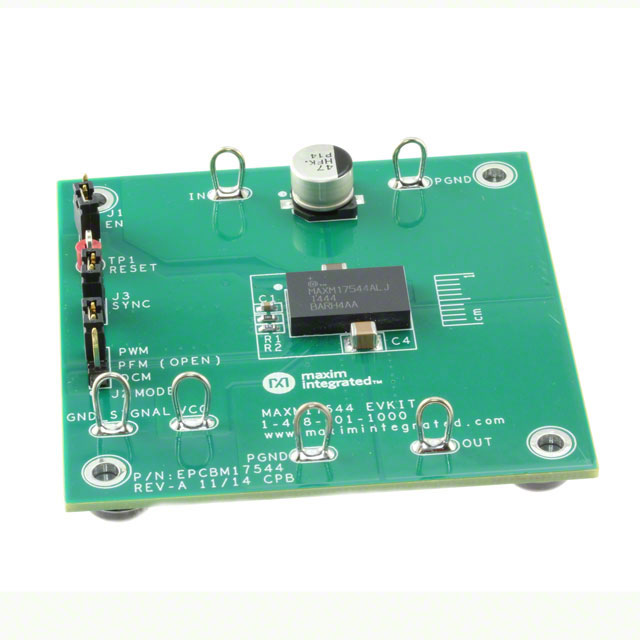

EVAL KIT FOR MAXM17544
Deep-Dive with AI
Search across all available documentation for this part.
MAXM17544EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17544
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17544EVKIT# | MAXM17544 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 3.5 A | 3.5 A |
| Current - Output (Max) | - | 3.5 A |
| Features | - | OTP, UVLO, OCP |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 29-SMD Module, Exposed Pad |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 0.11 in |
| Size / Dimension | - | 0.59 in |
| Size / Dimension | - | 9 mm |
| Size / Dimension | - | 2.8 mm |
| Size / Dimension | - | 0.35 " |
| Supplied Contents | Board(s) | Board(s) |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17544 | MAXM17544 |
| Voltage - Input (Max) | - | 42 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 42 V | 42 V |
| Voltage - Input [Min] | 4.5 V | 4.5 V |
| Voltage - Output [Max] | 12 V | 12 V |
| Voltage - Output [Min] | 0.9 V | 0.9 V |
| Voltage - Output 1 | - | 0.9 V |
| Voltage - Output 1 | - | 12 V |
