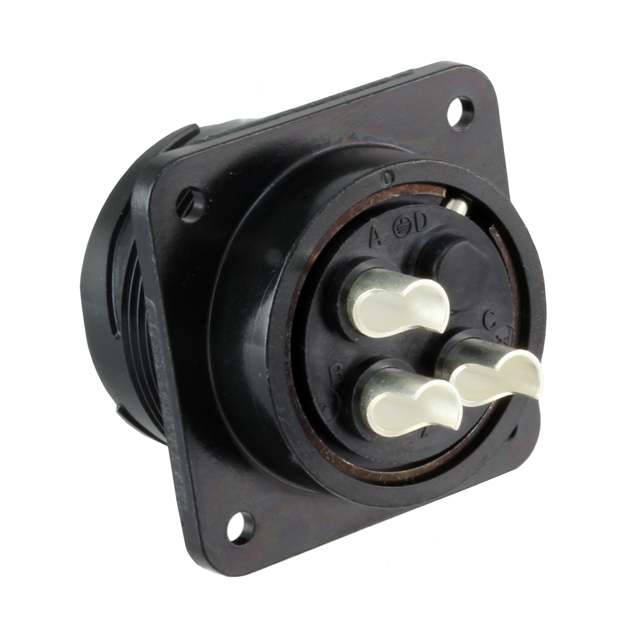

JL10-2E22-22PE

Active

JAE Electronics

CONN RCPT MALE 4P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT MALE 4P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JL10-2E22-22PE

Applications	Industrial, Test Equipment & Measurement, Communication Systems
Cable Opening [custom]	33 mm
Cable Opening [custom]	1.299 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock, Threaded
Features	Ground
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Silicon Rubber
Mounting Feature	Flange
Number of Positions	4
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	22
Shell Size - Insert [Min]	22

Part	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Fastening Type	Insert Material	Orientation	Features	Ingress Protection	Contact Material	Connector Type	Mounting Feature	Number of Positions	Shell Material	Cable Opening [custom]	Cable Opening [custom]	Shell Finish	Color	Applications	Contact Finish - Mating	Primary Material
JAE Electronics JL10-2E22-22PE	22	22	Bayonet Lock Threaded	Silicon Rubber	N	Ground	IP67 - Dust Tight Waterproof	Copper Alloy	Male Pins Receptacle	Flange	4	Aluminum Alloy	33 mm	1.299 in	Zinc	Black	Communication Systems Industrial Test Equipment & Measurement	Silver	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
