Q-2002I00051.5M
ActiveAmphenol Custom Cable

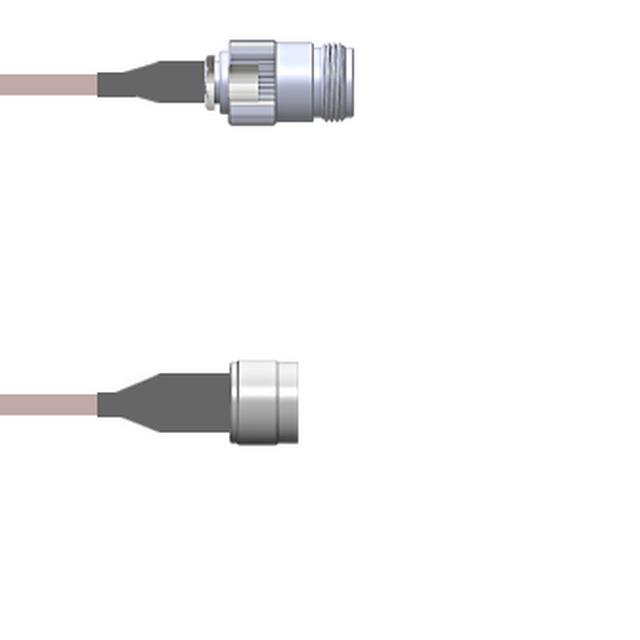

CBL ASSY NTYPE JACK TO PLUG 4.9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2002I00051.5M
ActiveAmphenol Custom Cable
CBL ASSY NTYPE JACK TO PLUG 4.9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2002I00051.5M |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 59.1 in |
| Length | 4.9 ft |
| Length | 1.5 m |
| Overall Impedance | 50 Ohms |
| Style | N-Type to N-Type |
Q-2002I0 Series
| Part | 1st Connector | Features | 1st Connector Mounting Type | 2nd Connector | 1st Contact Gender | 2nd Contact Gender | 2nd Connector Mounting Type | Color | Frequency - Max [Max] | Cable Type | Overall Impedance | Style | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Black | 11 GHz | RG-174 | 50 Ohms | N-Type to N-Type | 84 in | 2.1 m | 7 ft |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Copper | 11 GHz | RG-316 | 50 Ohms | N-Type to N-Type | 3 in | 76.2 mm | |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Black | 11 GHz | RG-174 | 50 Ohms | N-Type to N-Type | 98.4 in | 2.5 m | 8.2 ' |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Black | 11 GHz | RG-174 | 50 Ohms | N-Type to N-Type | 3 in | 76.2 mm | |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Copper | 11 GHz | RG-316 | 50 Ohms | N-Type to N-Type | 59.1 in | 1.5 m | 4.9 ft |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Copper | 11 GHz | RG-316 | 50 Ohms | N-Type to N-Type | 98.4 in | 2.5 m | 8.2 ' |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Black | 11 GHz | RG-174 | 50 Ohms | N-Type to N-Type | 108 in | 2.7 m | 9 ft |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Black | 11 GHz | RG-174 | 50 Ohms | N-Type to N-Type | 78.7 in | 2 m | 6.6 ft |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Black | 11 GHz | RG-174 | 50 Ohms | N-Type to N-Type | 6 in | 152.4 mm | |
Amphenol Custom Cable | N-Type Jack | Shielded | Free Hanging (In-Line) | N-Type Plug | Female | Male | Free Hanging (In-Line) | Black | 11 GHz | RG-174 | 50 Ohms | N-Type to N-Type | 59.1 in | 1.5 m | 4.9 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 72.70 | |
| 25 | $ 67.65 | |||
| 50 | $ 62.60 | |||
| 100 | $ 58.28 | |||
| 250 | $ 54.67 | |||
Description
General part information
Q-2002I0 Series
Cable Assembly Coaxial N-Type to N-Type RG-316 59.1" (1.5m) 4.9'
Documents
Technical documentation and resources
No documents available
