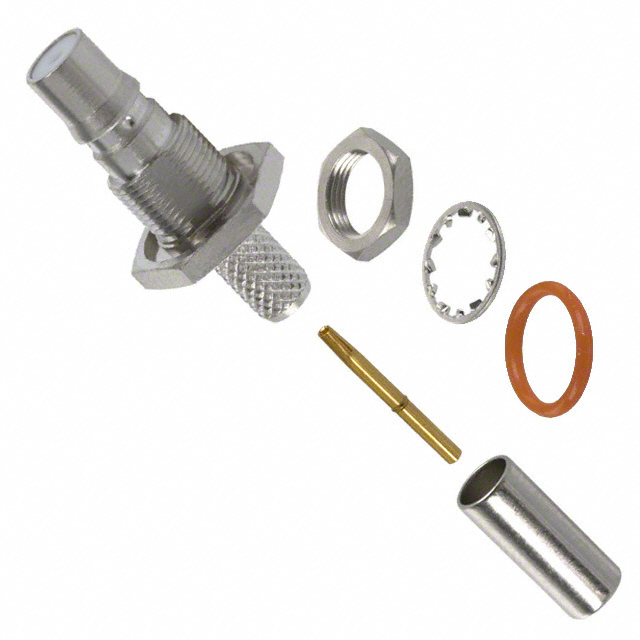

Specification	930-125J-51S

Body Finish	White Bronze
Body Material	Brass
Cable Group	58B, RG-58, 141, 9907, 58C, 58A, 303, LMR-195, Belden B7806A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	QMA
Connector Type	Jack, Female Socket
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Includes	Nut, Connector, Contact, Lockwasher
Includes Total Count	4 pcs
Mating Cycles	100 cycles
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Crimp
Voltage Rating	480 VAC

930-12 Series

Part	Connector Type	Center Contact Material	Shield Termination	Impedance	Connector Style	Housing Color	Contact Termination	Mounting Type	Fastening Type	Frequency - Max	Number of Ports	Body Material	Dielectric Material	Mating Cycles	Body Finish	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Mounting Feature	Features	Cable Group	Includes	Includes Total Count	Cable Group Diameter (Default)	Cable Group Diameter (Semi Rigid)
McGill Microwave Systems 930-128J-51P	Female Socket Jack	Beryllium Copper	Solder	50 Ohm	QMA	Gold	Solder	Right Angle Through Hole	Snap-On	6000 MHz	1	Brass	Polytetrafluoroethylene (PTFE)	100 cycles	Gold	480 VAC	80 °C	-40 °C	Gold
McGill Microwave Systems 930-127J-51S	Female Socket Recepture	Beryllium Copper	Solder	50 Ohm	QMA	Silver	Solder	Panel Mount	Snap-On	6000 MHz	1	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	White Bronze	480 VAC	165 °C	-55 °C	Gold	Bulkhead Rear Side Nut	Extended Insulation
McGill Microwave Systems 930-124J-51S	Female Socket Jack	Beryllium Copper	Crimp	50 Ohm	QMA	Silver	Solder	Panel Mount	Snap-On	11 GHz	1	Brass	Polytetrafluoroethylene (PTFE)	100 cycles	White Bronze	480 VAC	85 °C	-40 °C	Gold	Bulkhead Front Side Nut		188 188A 316 LMR-100 M17/119-RG174 RG-174	Connector Contact Lockwasher Nut	4 pcs
McGill Microwave Systems 930-121J-51S	Female Socket Jack	Beryllium Copper	Solder	50 Ohm	QMA	Gold	Solder	Panel Mount	Snap-On	11 GHz	1	Brass	Polytetrafluoroethylene (PTFE)	100 cycles	Gold	480 VAC	85 °C	-40 °C	Gold	Bulkhead Front Side Nut		RG-405	Connector Lockwasher Nut	3 pcs	0.085 in	0.086 in
McGill Microwave Systems 930-125J-51S	Female Socket Jack	Beryllium Copper	Crimp	50 Ohm	QMA	Silver	Crimp	Panel Mount	Snap-On	11 GHz	1	Brass	Polytetrafluoroethylene (PTFE)	100 cycles	White Bronze	480 VAC	85 °C	-40 °C	Gold	Bulkhead Front Side Nut		141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Connector Contact Lockwasher Nut	4 pcs
McGill Microwave Systems 930-120P-51S	Male Pin Plug	Brass	Crimp	50 Ohm	QMA	Silver	Solder	Free Hanging (In-Line)	Snap-On	6000 MHz	1	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	White Bronze	480 VAC	165 °C	-65 °C	Gold			141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Connector Contact Ferrule	3 pcs
McGill Microwave Systems 930-122J-51S	Female Socket Jack	Beryllium Copper	Solder	50 Ohm	QMA	Gold	Solder	Panel Mount	Snap-On	11 GHz	1	Brass	Polytetrafluoroethylene (PTFE)	100 cycles	Gold	480 VAC	85 °C	-40 °C	Gold	Bulkhead Front Side Nut		RG-402	Connector Lockwasher Nut	3 pcs		0.141 in
McGill Microwave Systems 930-126J-51S	Female Socket Jack	Beryllium Copper	Solder	50 Ohm	QMA	Silver	Solder	Panel Mount	Snap-On	11 GHz	1	Brass	Polytetrafluoroethylene (PTFE)	500 cycles	White Bronze	480 VAC	165 °C	-65 °C	Gold	Bulkhead Front Side Nut			Connector Nut	2 pcs
McGill Microwave Systems 930-123J-51S	Female Socket Jack	Beryllium Copper	Crimp	50 Ohm	QMA	Silver	Solder	Panel Mount	Snap-On	11 GHz	1	Brass	Polytetrafluoroethylene (PTFE)	100 cycles	White Bronze	480 VAC	85 °C	-40 °C	Gold	Bulkhead Front Side Nut		188 316 Double Braid M17/152-RD316 RG-179	Connector Contact Lockwasher Nut	4 pcs
