TRAPC3MSX

Active

Switchcraft Inc.

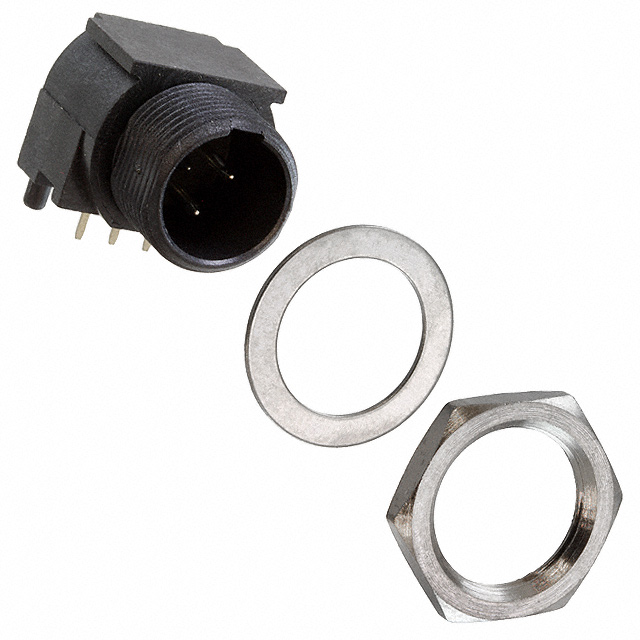

CONN RCPT MALE MINI XLR 3P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 3P SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TRAPC3MSX	TRAPC3 Series

Applications	Medical, Testing Equipment & Measurement, Audio	Medical, Testing Equipment & Measurement, Audio
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Material	Brass	Brass
Current Rating (Amps)	5 A	5 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Guide	Board Guide
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert	Mini XLR	Mini XLR
Termination	Solder	Solder

CONN RCPT MALE MINI XLR 3P SLDR

Part	Fastening Type	Orientation	Contact Material	Features	Primary Material	Shell Size - Insert	Applications	Color	Termination	Insert Material	Current Rating (Amps)	Connector Type	Mounting Type	Mounting Feature
Switchcraft Inc. TRAPC3M1X	Latch Lock	Keyed	Brass	Board Guide	Plastic	Mini XLR	Audio, Medical, Testing Equipment & Measurement	Black	Solder	Thermoplastic	5 A	Male Pins, Receptacle	Through Hole, Right Angle
Switchcraft Inc. TRAPC3M1	Latch Lock	Keyed	Brass	Board Guide	Plastic	Mini XLR	Audio, Medical, Testing Equipment & Measurement	Black	Solder	Thermoplastic	5 A	Male Pins, Receptacle	Through Hole, Right Angle
Switchcraft Inc. TRAPC3MX	Latch Lock	Keyed	Brass	Board Guide	Plastic	Mini XLR	Audio, Medical, Testing Equipment & Measurement	Black	Solder	Thermoplastic	5 A	Male Pins, Receptacle	Through Hole, Right Angle	Bulkhead - Front Side Nut
Switchcraft Inc. TRAPC3M	Latch Lock	Keyed	Brass	Board Guide	Plastic	Mini XLR	Audio, Medical, Testing Equipment & Measurement	Black	Solder	Thermoplastic	5 A	Male Pins, Receptacle	Through Hole, Right Angle	Bulkhead - Front Side Nut
Switchcraft Inc. TRAPC3MSX	Latch Lock	Keyed	Brass	Board Guide	Plastic	Mini XLR	Audio, Medical, Testing Equipment & Measurement	Black	Solder	Thermoplastic	5 A	Male Pins, Receptacle	Through Hole, Right Angle	Bulkhead - Front Side Nut
