Q-27039000M.75M

Active

Amphenol Custom Cable

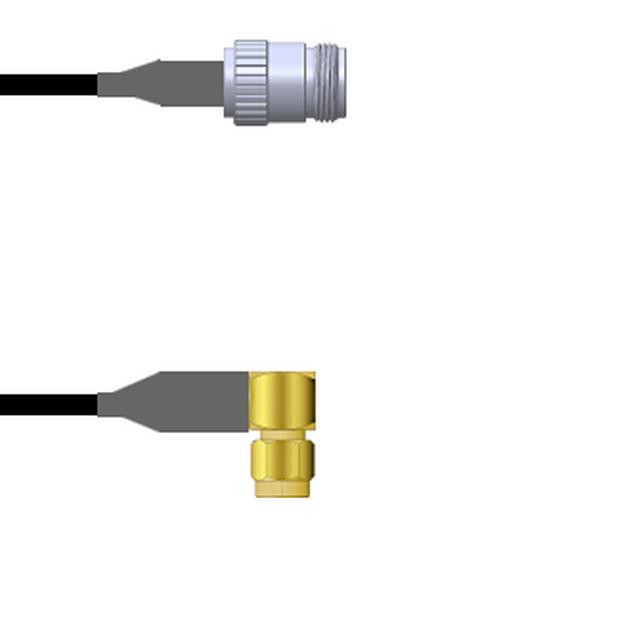

CBL ASSY SMA-NTYPE PL-JK 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-27039000M.75M

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE PL-JK 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-27039000M.75M

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-270390 Series

Part	1st Connector Mounting Type	2nd Connector Mounting Type	Color	Cable Type	2nd Contact Gender	1st Contact Gender	Frequency - Max [Max]	Overall Impedance	1st Connector	Length	Length	Length	2nd Connector	Style	Features
Amphenol Custom Cable Q-27039000M084i	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	84 in	2.1 m	7 ft	N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M001M	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	39.4 in	1 m	3.3 ft	N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M.75M	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	29.53 "	750 mm		N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M1.5M	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	59.1 in	1.5 m	4.9 ft	N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M002M	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	78.7 in	2 m	6.6 ft	N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M024i	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	24 "	609.6 mm		N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M072i	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	72 in	1.8 m	6 ft	N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M048i	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	48 in	1200 mm	4 ft	N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M036i	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	36 in	91.44 cm		N-Type Jack	SMA to N-Type	Shielded
Amphenol Custom Cable Q-27039000M0.5M	Free Hanging (In-Line)	Free Hanging (In-Line)	Black	LMR 240	Female	Male	6000 MHz	50 Ohms	Right Angle SMA Plug	19.69 "	50 cm		N-Type Jack	SMA to N-Type	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 133.55
		25	$ 131.00
		50	$ 128.46
		100	$ 125.92
		250	$ 123.37

Description

General part information

Q-270390 Series

Cable Assembly Coaxial SMA to N-Type LMR 240 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
