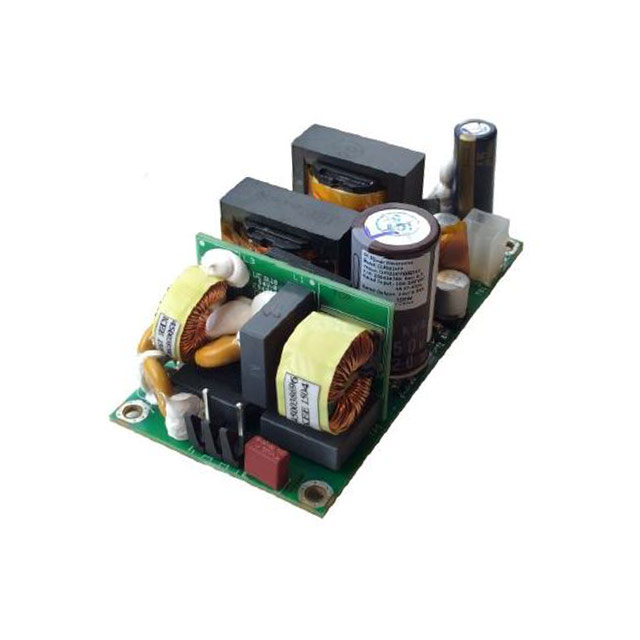

CLP0228FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 28V 200W
CLP0228FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 28V 200W
Description
General part information
CLP0228 Series
Open Frame AC DC Converters 1 Output 28V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | CLP0228FPXXXZ01A |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE |
| Current - Output 1 | 7.1 A |
| Efficiency | 93.6 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Power (Watts) | 200 W |
| Size / Dimension Height | 1.3 in |
| Size / Dimension Length | 4 in |
| Size / Dimension Width | 2 in |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 28 V |
