746-054-525-506

Active

EDAC Inc.

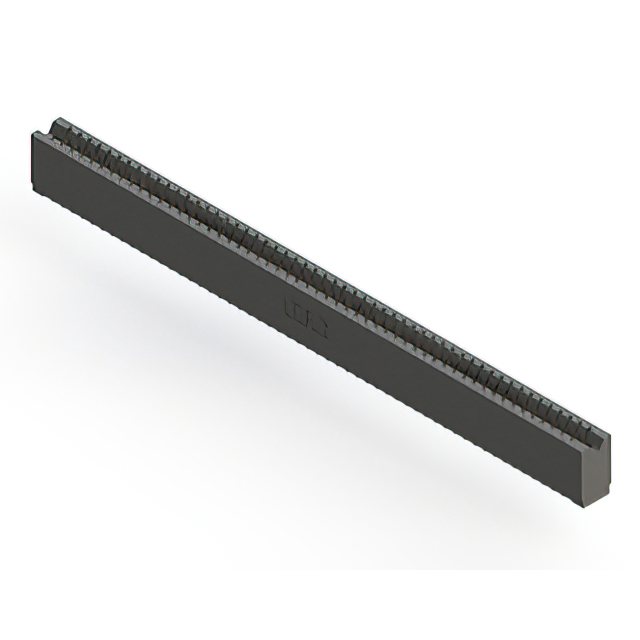

CARD EDGE CONNECTOR, 54 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.125 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

746-054-525-506

Active

EDAC Inc.

CARD EDGE CONNECTOR, 54 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.125 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-054-525-506

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	54
Number of Positions/Bay/Row [custom]	54
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Press-Fit
Termination Rows	1

746-054 Series

Part	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Number of Positions	Contact Type	Number of Positions/Bay/Row [custom]	Number of Rows	Mounting Type	Color	Contact Finish	Termination Rows	Number of Positions/Bay/Row [custom]
EDAC Inc. 746-054-540-606	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Dual	Press-Fit Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	54	Cantilever	27	2	Through Hole	Black	Gold	2
EDAC Inc. 746-054-553-606	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Dual	Press-Fit Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	54	Cantilever	27	2	Through Hole	Black	Gold	2
EDAC Inc. 746-054-553-601	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Dual	Press-Fit Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	54	Cantilever	27	2	Through Hole	Black	Gold	2
EDAC Inc. 746-054-545-201	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Dual	Press-Fit Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	54	Cantilever	27	2	Through Hole	Black	Gold	2
EDAC Inc. 746-054-520-106	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Single	Press-Fit	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	54	Cantilever		1	Through Hole	Black	Gold	1	54
EDAC Inc. 746-054-525-506	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Single	Press-Fit	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	54	Cantilever		1	Through Hole	Black	Gold	1	54
EDAC Inc. 746-054-540-601	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Dual	Press-Fit Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	54	Cantilever	27	2	Through Hole	Black	Gold	2
EDAC Inc. 746-054-525-606	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Dual	Press-Fit	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	54	Cantilever	27	2	Through Hole	Black	Gold	2
EDAC Inc. 746-054-525-601	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Dual	Press-Fit	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	54	Cantilever	27	2	Through Hole	Black	Gold	2
EDAC Inc. 746-054-540-206	Female	-40 °C	105 ░C	Polyester Thermoplastic	0.125 in	3.18 mm	0.76 Ám	30 Áin	Dual	Press-Fit Wire Wrap	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	54	Cantilever	27	2	Through Hole	Black	Gold	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 11.03
Newark	Each	1	$ 12.99
		100	$ 8.73
		250	$ 7.80
		500	$ 7.59
		1000	$ 6.52

Description

General part information

746-054 Series

54 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
