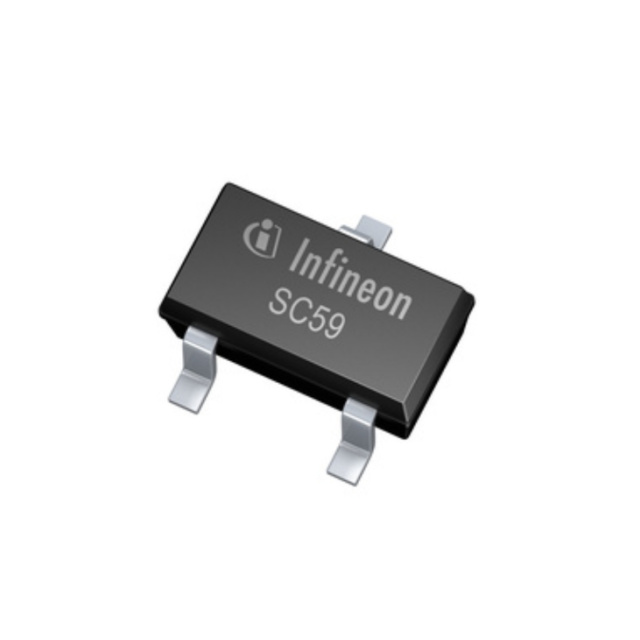

TLE49642KXTSA1
ActiveInfineon Technologies
MAGNETIC SWITCH UNIPOLAR SC59
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TLE49642KXTSA1
ActiveInfineon Technologies
MAGNETIC SWITCH UNIPOLAR SC59
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TLE49642KXTSA1 |
|---|---|
| Current - Output (Max) [Max] | 25 mA |
| Current - Supply (Max) [Max] | 2.5 mA |
| Features | Temperature Compensated |
| Function | Unipolar Switch |
| Grade | Automotive |
| Output Type | Open Drain |
| Polarization | South Pole |
| Qualification | AEC-Q100 |
| Sensing Range | 28 mT, 22.5 mT |
| Technology | Hall Effect |
| Test Condition | 25 °C |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.36 | |||
| Digi-Reel® | 1 | $ 0.88 | ||
| 10 | $ 0.67 | |||
| 25 | $ 0.58 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.36 | |||
| Tape & Reel (TR) | 3000 | $ 0.35 | ||
| 6000 | $ 0.32 | |||
| 9000 | $ 0.30 | |||
| 15000 | $ 0.29 | |||
| 30000 | $ 0.28 | |||
Description
General part information
TLE49642 Series
The TLE4964-2K is an integrated Hall effect switch designed specifically for highly accurate applications with superior supply voltage capability, operating temperature range and temperature stability of the magnetic thresholds.
