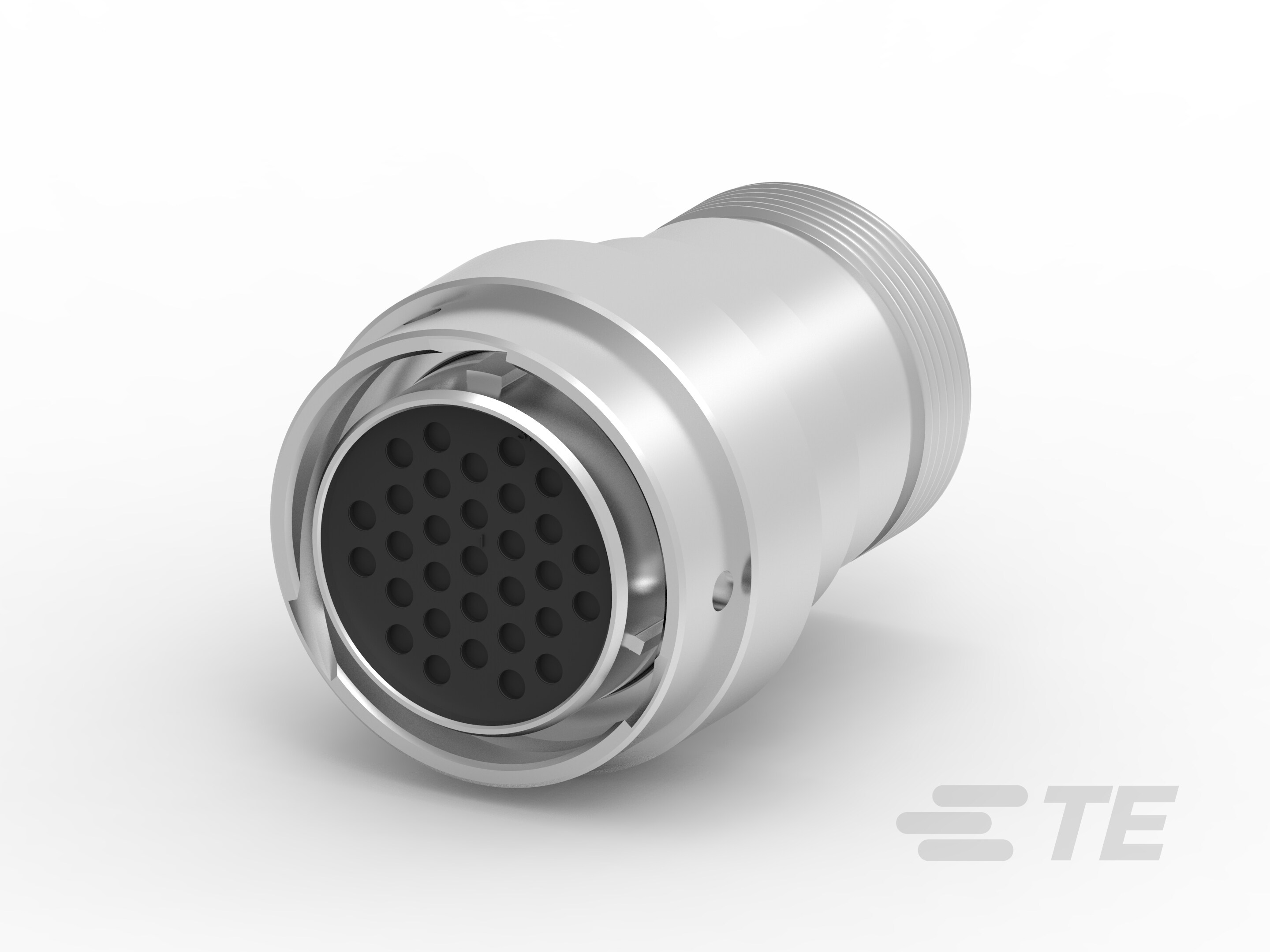

PLG, 31P, AL, E, THD ADPT, NO DRAIN,16,S-HD36-24-31SE-L005

HD36-24-31SE-L005

Active
TE Connectivity AMP Connectors

PLG, 31P, AL, E, THD ADPT, NO DRAIN,16,S

Find alt
PLG, 31P, AL, E, THD ADPT, NO DRAIN,16,S-HD36-24-31SE-L005

HD36-24-31SE-L005

Active
TE Connectivity AMP Connectors

PLG, 31P, AL, E, THD ADPT, NO DRAIN,16,S

Find alt

Description

General part information

DEUTSCH HD30 Series

31 Position Housing, Housing for Female Terminals, Wire-to-Wire, Sealable, Wire & Cable, Power, Cable Mount (Free-Hanging), Hybrid

Technical Specifications

Parameters and characteristics for this part

SpecificationHD36-24-31SE-L005
Connector TypePlug Housing
Contact ShapeCircular
Contact Size16 S
Contact TypeCrimp
Fastening TypeBayonet Lock
FeaturesCoupling Nut
Housing ColorSilver
Ingress Protection DescriptionWaterproof, Dust Tight
Ingress Protection IP RatingIP67
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions31
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
OrientationKeyed
Primary MaterialMetal
Shell MaterialAluminum Alloy
Shell Size - Insert (Maximum)31
Shell Size - Insert (Minimum)24
ShieldingUnshielded
TypeFor Female Sockets
