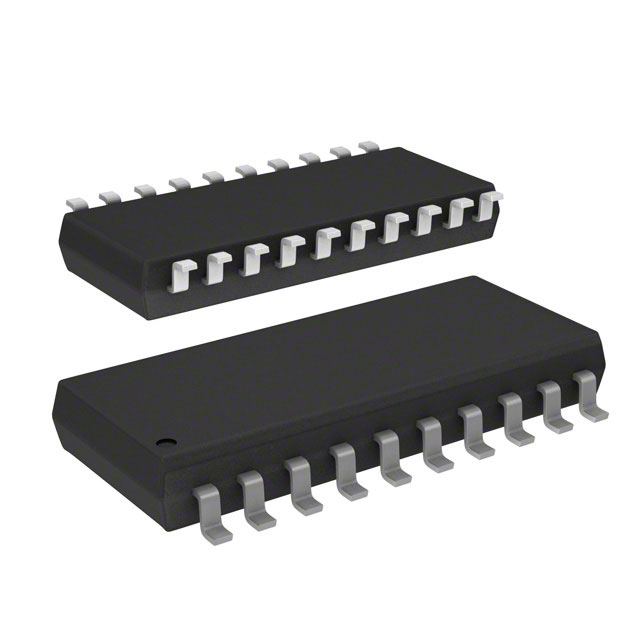

4820P-1-470

Active

Bourns Inc.

RES ARRAY 10 RES 47 OHM 20SOIC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4820P-1-470

Active

Bourns Inc.

RES ARRAY 10 RES 47 OHM 20SOIC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4820P-1-470

Circuit Type	Isolated
Grade	Automotive
Height - Seated (Max) [Max] [z]	0.094 "
Height - Seated (Max) [Max] [z]	2.4 mm
Mounting Type	Surface Mount
Number of Resistors	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	20-SOIC
Package / Case [x]	0.22 in
Package / Case [x]	5.59 mm
Power Per Element	160 mW
Qualification	AEC-Q200
Resistance (Ohms)	47 Ohms
Size / Dimension [x]	0.54 in
Size / Dimension [x]	13.72 mm
Size / Dimension [y]	5.59 mm
Size / Dimension [y]	0.22 "
Supplier Device Package	20-SOM
Temperature Coefficient	250 ppm/°C
Tolerance	1 Ohm

4820P Series

...

Part	Package / Case	Package / Case [x]	Package / Case [x]	Tolerance	Number of Resistors	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Operating Temperature [Min]	Operating Temperature [Max]	Resistance (Ohms)	Power Per Element	Circuit Type	Mounting Type	Supplier Device Package	Qualification	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Grade	Resistance (Ohms)
Bourns Inc. 4820P-2-272	20-SOIC	0.22 in	5.59 mm	2 %	19	5.59 mm	0.22 "	0.54 in	13.72 mm	100 ppm/°C	-55 °C	125 °C	2.7 kOhms	80 mW	Bussed	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive
Bourns Inc. 4820P-T01-221	20-SOIC	0.22 in	5.59 mm	2 %	10	5.59 mm	0.22 "	0.54 in	13.72 mm	100 ppm/°C	-55 °C	125 °C	220 Ohms	160 mW	Isolated	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive
Bourns Inc. 4820P-T01-152LF	20-SOIC	0.22 in	5.59 mm	2 %	10	5.59 mm	0.22 "	0.54 in	13.72 mm	100 ppm/°C	-55 °C	125 °C	1.5 kOhms	160 mW	Isolated	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive
Bourns Inc. 4820P-1-121	20-SOIC	0.22 in	5.59 mm	2 %	10	5.59 mm	0.22 "	0.54 in	13.72 mm	100 ppm/°C	-55 °C	125 °C	120 Ohms	160 mW	Isolated	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive
Bourns Inc. 4820P-1-330	20-SOIC	0.22 in	5.59 mm	1 Ohm	10	5.59 mm	0.22 "	0.54 in	13.72 mm	250 ppm/°C	-55 °C	125 °C	33 Ohms	160 mW	Isolated	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive
Bourns Inc. 4820P-T02-223	20-SOIC	0.22 in	5.59 mm	2 %	19	5.59 mm	0.22 "	0.54 in	13.72 mm	100 ppm/°C	-55 °C	125 °C		80 mW	Bussed	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive	22k
Bourns Inc. 4820P-T02-271	20-SOIC	0.22 in	5.59 mm	2 %	19	5.59 mm	0.22 "	0.54 in	13.72 mm	100 ppm/°C	-55 °C	125 °C	270 Ohms	80 mW	Bussed	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive
Bourns Inc. 4820P-2-224LF	20-SOIC	0.22 in	5.59 mm	2 %	19	5.59 mm	0.22 "	0.54 in	13.72 mm	100 ppm/°C	-55 °C	125 °C		80 mW	Bussed	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive	220k
Bourns Inc. 4820P-2-472LF	20-SOIC	0.22 in	5.59 mm	2 %	19	5.59 mm	0.22 "	0.54 in	13.72 mm	100 ppm/°C	-55 °C	125 °C		80 mW	Bussed	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive	4.7k
Bourns Inc. 4820P-1-470	20-SOIC	0.22 in	5.59 mm	1 Ohm	10	5.59 mm	0.22 "	0.54 in	13.72 mm	250 ppm/°C	-55 °C	125 °C	47 Ohms	160 mW	Isolated	Surface Mount	20-SOM	AEC-Q200	0.094 "	2.4 mm	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.68

Description

General part information

4820P Series

47 Ohm ±1Ohm 160mW Power Per Element Isolated 10 Resistor Network/Array ±250ppm/°C 20-SOIC (0.220", 5.59mm Width)
