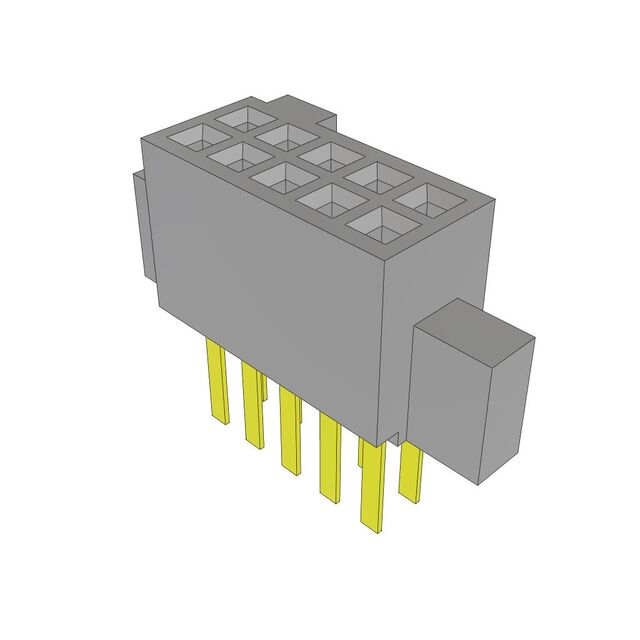

SFC-105-T1-F-D

Active

Samtec Inc.

CONN RCPT 10POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFSD Series Other Related Documents 03 Datasheet +2

SFC-105-T1-F-D

Active

Samtec Inc.

CONN RCPT 10POS 0.05 GOLD PCB

Deep-Dive with AI

DocumentsSFSD Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFC-105-T1-F-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	350 VAC

SFC-105 Series

Part	Number of Positions Loaded	Connector Type	Fastening Type	Contact Finish - Post	Termination	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Voltage Rating	Style	Contact Shape	Insulation Color	Mounting Type	Insulation Material	Contact Material	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Features
Samtec Inc. SFC-105-T1-F-D	All	Receptacle	Push-Pull	Tin	Solder	2	3 µin	0.076 µm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Through Hole	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10	0.12 in	3.05 mm	-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A
Samtec Inc. SFC-105-T1-LM-D	All	Receptacle	Push-Pull	Tin	Solder	2	10 çin	0.25 çm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Through Hole	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10	0.12 in	3.05 mm	-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A
Samtec Inc. SFC-105-T2-F-D-TR	All	Receptacle	Push-Pull	Tin	Solder	2	3 µin	0.076 µm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Surface Mount	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10			-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A
Samtec Inc. SFC-105-T1-L-D-A	All	Receptacle	Push-Pull	Tin	Solder	2	10 çin	0.25 çm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Through Hole	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10	0.12 in	3.05 mm	-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A	Board Guide
Samtec Inc. SFC-105-T2-L-D-LC	All	Receptacle	Push-Pull	Tin	Solder	2	10 çin	0.25 çm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Surface Mount	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10			-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A
Samtec Inc. SFC-105-T2-F-D-A-K-TR	All	Receptacle	Push-Pull	Tin	Solder	2	3 µin	0.076 µm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Surface Mount	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10			-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A	Board Guide Pick and Place
Samtec Inc. SFC-105-T2-F-D	All	Receptacle	Push-Pull	Tin	Solder	2	3 µin	0.076 µm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Surface Mount	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10			-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A
Samtec Inc. SFC-105-T2-L-D-A-TR	All	Receptacle	Push-Pull	Tin	Solder	2	10 çin	0.25 çm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Surface Mount	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10			-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A	Board Guide
Samtec Inc. SFC-105-T2-L-D-LC-K-TR	All	Receptacle	Push-Pull	Tin	Solder	2	10 çin	0.25 çm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Surface Mount	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10			-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A	Board Lock Pick and Place
Samtec Inc. SFC-105-T1-L-D	All	Receptacle	Push-Pull	Tin	Solder	2	10 çin	0.25 çm	Gold	4.57 mm	0.18 "	0.05 in	1.27 mm	350 VAC	Board to Board Cable	Square	Black	Through Hole	Liquid Crystal Polymer (LCP)	Phosphor Bronze	10	0.12 in	3.05 mm	-55 °C	125 °C	Female Socket	0.05 in	1.27 mm	3.1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.13
		50	$ 1.74
		100	$ 1.48
		500	$ 1.31
		1000	$ 1.00
		2000	$ 0.90
		5000	$ 0.78
