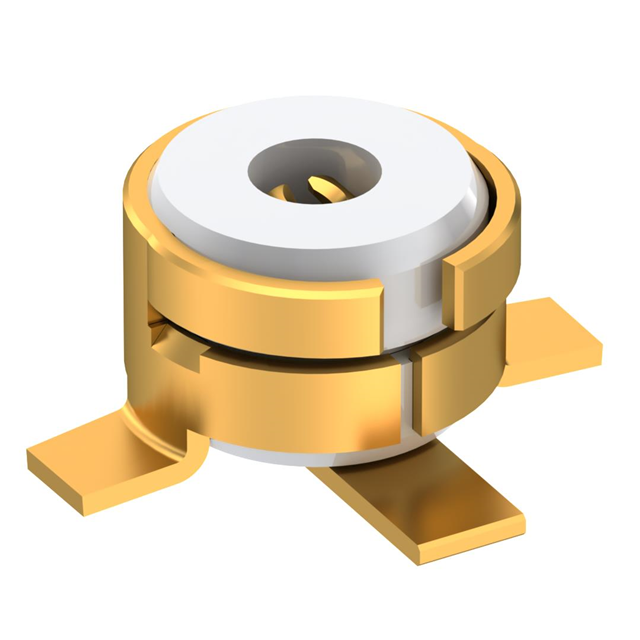

Specification	R209408052

Body Finish	Gold
Body Material	Phosphor Bronze
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Jack, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	6000 MHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	50 cycles
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Solder
Voltage Rating	50 V

R20940 Series

Part	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Mating Cycles	Body Material	Body Finish	Dielectric Material	Center Contact Plating	Number of Ports	Contact Termination	Fastening Type	Frequency - Max	Connector Type	Housing Color	Mounting Type	Shield Termination	Center Contact Material	Impedance	Connector Style
Radiall USA, Inc. R209408052	50 V	125 °C	-40 °C	50 cycles	Phosphor Bronze	Gold	Polytetrafluoroethylene (PTFE)	Gold	1	Solder	Snap-On	6000 MHz	Jack Male Pin	Gold	Surface Mount	Solder	Beryllium Copper	50 Ohm
Radiall USA, Inc. R209408012W	50 V	125 °C	-40 °C	50 cycles	Phosphor Bronze	Gold	Polytetrafluoroethylene (PTFE)	Gold	1	Solder	Snap-On	6000 MHz	Female Socket Recepture	Gold	Surface Mount	Solder	Beryllium Copper	50 Ohm	MMS
Radiall USA, Inc. R209408012	50 V	125 °C	-40 °C	50 cycles	Phosphor Bronze	Gold	Polytetrafluoroethylene (PTFE)	Gold	1	Solder	Snap-On	6000 MHz	Female Socket Recepture	Gold	Surface Mount	Solder	Beryllium Copper	50 Ohm
