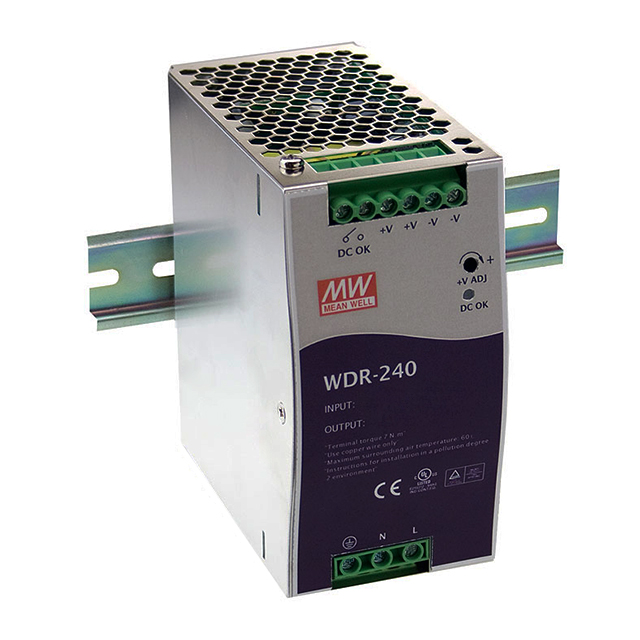

WDR-240-48
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 48V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WDR-240-48
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 48V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WDR-240-48 |
|---|---|
| AC Voltage - Input [Max] | 550 VAC |
| AC Voltage - Input [Min] | 180 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CB, CE, UL |
| Current - Output (Max) [Max] | 5 A |
| DC Voltage - Input (Max) [Max] | 780 V |
| DC Voltage - Input (Min) [Min] | 254 V |
| Efficiency | 91 % |
| Features | Adjustable Output, PFC |
| Input Type | AC or DC |
| Minimum Load Required | False |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 113.5 mm |
| Size / Dimension [x] | 4.47 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [z] | 4.93 in |
| Size / Dimension [z] | 125.2 mm |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 130.59 | |
| 5 | $ 119.32 | |||
| 10 | $ 114.78 | |||
| 25 | $ 109.03 | |||
Description
General part information
WDR-240 Series
AC/DC DIN RAIL SUPPLY 48V 240W
