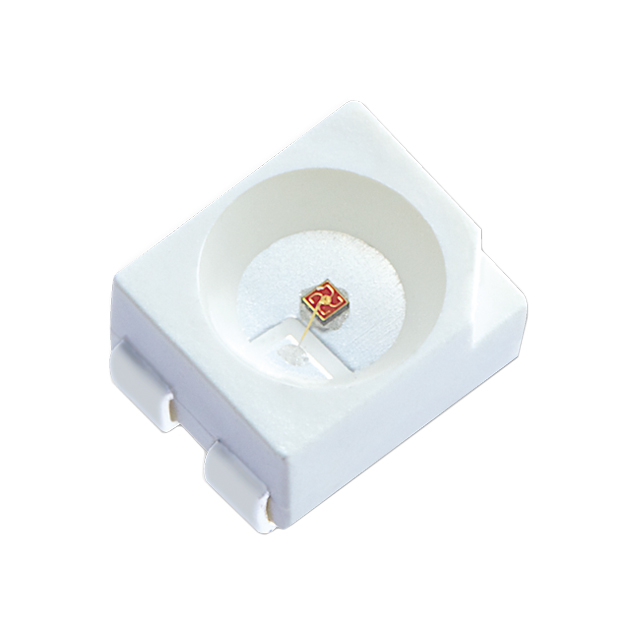

AA3527ASYSK/J3-50MAV

Active

Kingbright

LED YELLOW CLEAR 4SMD

Search across all available documentation for this part.

Active

Kingbright

LED YELLOW CLEAR 4SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 590nm LED Indication - Discrete 2.3V 4-SMD, J-Lead

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED GREEN CLEAR 4SMD

Part	Current - Test	Package / Case	Color	Lens Color	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Lens Transparency	Configuration	Wavelength - Dominant	Height (Max) [Max] [z]	Mounting Type	Viewing Angle	Millicandela Rating	Supplier Device Package	Lens Size [diameter]	Height (Max) [Max]	Wavelength - Peak [custom]
Kingbright AA3527AZGSK-30MAV	30 mA	4-SMD, J-Lead	Green	Colorless	515 nm	3.5 V	Clear	Independent	525 nm	2.15 mm	Surface Mount	120 °	700 mcd	4-SMD	2.4 mm
Kingbright AA3527AVBS/D-30MAV	30 mA	4-SMD, J-Lead	Blue	Colorless	465 nm	3.5 V	Clear	Standard	470 nm		Surface Mount	120 °	600 mcd	4-SMD	2.4 mm	1.9 mm
Kingbright AA3527ASES-50MAV	50 mA	4-SMD, J-Lead		Colorless	610 nm	2.1 V	Clear	Standard	601 nm	2.15 mm	Surface Mount	120 °	500 mcd	SMD	2.4 mm
Kingbright AA3527AZGS-30MAV	30 mA	4-SMD, J-Lead	Green	Colorless	515 nm	3.3 V	Clear	Standard	525 nm		Surface Mount	120 °	750 mcd	4-SMD	2.4 mm	1.9 mm
Kingbright AA3527ASESK-50MAV	50 mA	4-SMD, J-Lead		Colorless	610 nm	2.25 V	Clear	Independent	601 nm	2.15 mm	Surface Mount	120 °	900 mcd	4-SMD	2.4 mm
Kingbright AA3527ASYS/J3-50MAV	50 mA	4-SMD, J-Lead	Yellow	Colorless	590 nm	2.3 V	Clear	Standard	590 nm		Surface Mount	120 °	1600 mcd	4-SMD	2.4 mm	1.9 mm
Kingbright AA3527ASYSK/J3-50MAV	50 mA	4-SMD, J-Lead	Yellow	Colorless	590 nm	2.3 V	Clear	Independent	590 nm	2.15 mm	Surface Mount	120 °	1500 mcd	4-SMD	2.4 mm
Kingbright AA3527ASESK/J3-50MAV	50 mA	4-SMD, J-Lead	Red	Colorless		2.5 V	Clear	Independent	625 nm	2.15 mm	Surface Mount	120 °	4200 mcd	4-SMD	2.4 mm		640 nm
