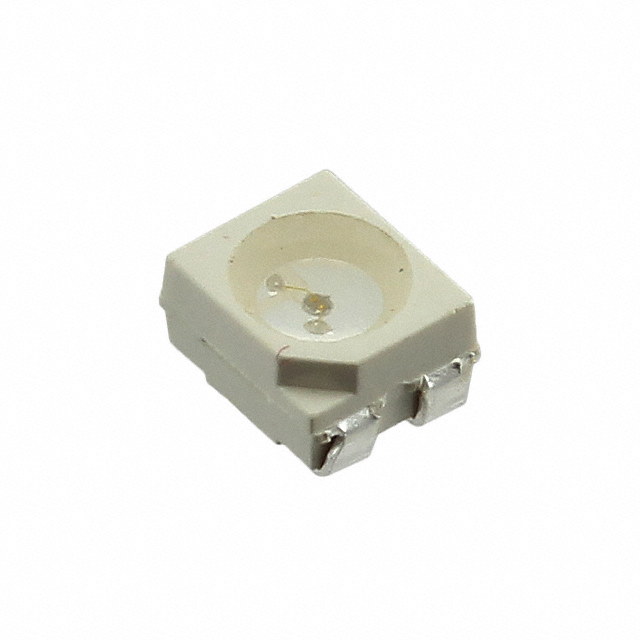

AA3527AVBS/D-30MAV

Active

Kingbright

LED UNI-COLOR BLUE 465NM 4-PIN PLCC T/R

Search across all available documentation for this part.

Active

Kingbright

LED UNI-COLOR BLUE 465NM 4-PIN PLCC T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

LED GREEN CLEAR 4SMD

Part	Current - Test	Package / Case	Color	Lens Color	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Lens Transparency	Configuration	Wavelength - Dominant	Height (Max) [Max] [z]	Mounting Type	Viewing Angle	Millicandela Rating	Supplier Device Package	Lens Size [diameter]	Height (Max) [Max]	Wavelength - Peak [custom]
Kingbright AA3527AZGSK-30MAV	30 mA	4-SMD, J-Lead	Green	Colorless	515 nm	3.5 V	Clear	Independent	525 nm	2.15 mm	Surface Mount	120 °	700 mcd	4-SMD	2.4 mm
Kingbright AA3527AVBS/D-30MAV	30 mA	4-SMD, J-Lead	Blue	Colorless	465 nm	3.5 V	Clear	Standard	470 nm		Surface Mount	120 °	600 mcd	4-SMD	2.4 mm	1.9 mm
Kingbright AA3527ASES-50MAV	50 mA	4-SMD, J-Lead		Colorless	610 nm	2.1 V	Clear	Standard	601 nm	2.15 mm	Surface Mount	120 °	500 mcd	SMD	2.4 mm
Kingbright AA3527AZGS-30MAV	30 mA	4-SMD, J-Lead	Green	Colorless	515 nm	3.3 V	Clear	Standard	525 nm		Surface Mount	120 °	750 mcd	4-SMD	2.4 mm	1.9 mm
Kingbright AA3527ASESK-50MAV	50 mA	4-SMD, J-Lead		Colorless	610 nm	2.25 V	Clear	Independent	601 nm	2.15 mm	Surface Mount	120 °	900 mcd	4-SMD	2.4 mm
Kingbright AA3527ASYS/J3-50MAV	50 mA	4-SMD, J-Lead	Yellow	Colorless	590 nm	2.3 V	Clear	Standard	590 nm		Surface Mount	120 °	1600 mcd	4-SMD	2.4 mm	1.9 mm
Kingbright AA3527ASYSK/J3-50MAV	50 mA	4-SMD, J-Lead	Yellow	Colorless	590 nm	2.3 V	Clear	Independent	590 nm	2.15 mm	Surface Mount	120 °	1500 mcd	4-SMD	2.4 mm
Kingbright AA3527ASESK/J3-50MAV	50 mA	4-SMD, J-Lead	Red	Colorless		2.5 V	Clear	Independent	625 nm	2.15 mm	Surface Mount	120 °	4200 mcd	4-SMD	2.4 mm		640 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 470nm LED Indication - Discrete 3.5V 4-SMD, J-Lead
