TFML-110-02-S-D-P-TR

Active

Samtec Inc.

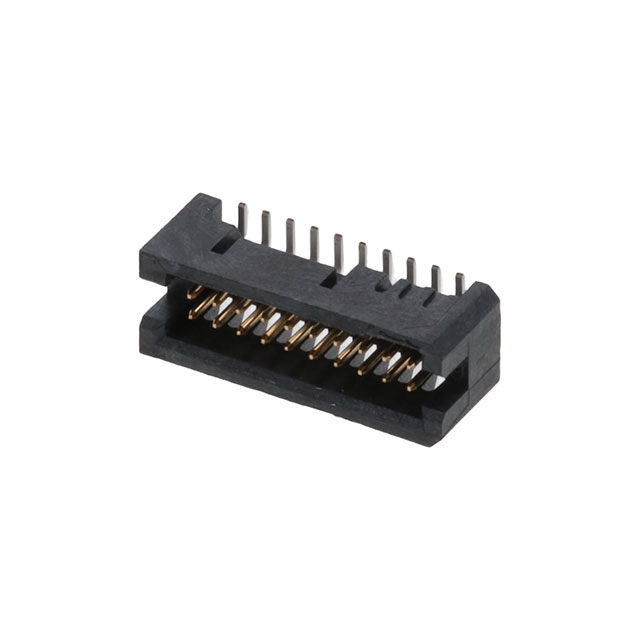

CONN SHROUDED HEADER (4 SIDES) HDR 20 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER EYE™ T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTFML Datasheet Tiger Eye™ High-Reliability Locking Terminal Strip, 0.050" Pitch +1

TFML-110-02-S-D-P-TR

Active

Samtec Inc.

CONN SHROUDED HEADER (4 SIDES) HDR 20 POS 1.27MM SOLDER ST TOP ENTRY SMD TIGER EYE™ T/R

Deep-Dive with AI

DocumentsTFML Datasheet Tiger Eye™ High-Reliability Locking Terminal Strip, 0.050" Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TFML-110-02-S-D-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.134 "
Contact Length - Mating	3.39 mm
Contact Length - Post	1.91 mm
Contact Length - Post [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Pick and Place
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

TFML-110 Series

Part	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions	Fastening Type	Insulation Color	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Style	Contact Shape	Number of Rows	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Termination	Contact Material	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post	Features
Samtec Inc. TFML-110-02-H-D	Shrouded - 4 Wall	3 µin	0.076 µm	5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Gold	20	Friction Lock	Black	All	0.05 in	1.27 mm	Surface Mount	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold
Samtec Inc. TFML-110-01-FM-D	Shrouded - 4 Wall			5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Tin	20	Friction Lock	Black	All	0.05 in	1.27 mm	Through Hole	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold	0.075 in	1.91 mm
Samtec Inc. TFML-110-02-S-D-LC	Shrouded - 4 Wall			5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Tin	20	Friction Lock	Black	All	0.05 in	1.27 mm	Surface Mount	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold
Samtec Inc. TFML-110-02-L-D-LC-K-TR	Shrouded - 4 Wall			5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	15 µin	0.38 µm	Tin	20	Friction Lock	Black	All	0.05 in	1.27 mm	Surface Mount	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold			Board Lock Pick and Place
Samtec Inc. TFML-110-01-F-D	Shrouded - 4 Wall			5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Tin	20	Friction Lock	Black	All	0.05 in	1.27 mm	Through Hole	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold	0.075 in	1.91 mm
Samtec Inc. TFML-110-02-S-D-P-TR	Shrouded - 4 Wall			5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Tin	20	Friction Lock	Black	All	0.05 in	1.27 mm	Surface Mount	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold	0.075 in	1.91 mm	Pick and Place
Samtec Inc. TFML-110-02-H-D-A	Shrouded - 4 Wall	3 µin	0.076 µm	5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Gold	20	Friction Lock	Black	All	0.05 in	1.27 mm	Surface Mount	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold			Board Guide
Samtec Inc. TFML-110-02-S-D-LC-P-TR	Shrouded - 4 Wall			5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Tin	20	Friction Lock	Black	All	0.05 in	1.27 mm	Surface Mount	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold			Board Lock Pick and Place
Samtec Inc. TFML-110-02-S-D-LC-K-TR	Shrouded - 4 Wall			5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Tin	20	Friction Lock	Black	All	0.05 in	1.27 mm	Surface Mount	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold			Board Lock Pick and Place
Samtec Inc. TFML-110-02-H-D-A-K-TR	Shrouded - 4 Wall	3 µin	0.076 µm	5.6 mm	0.22 in	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Gold	20	Friction Lock	Black	All	0.05 in	1.27 mm	Surface Mount	Male Pin	Header	-55 °C	125 °C	UL94 V-0	Board to Board Cable	Square	2	0.134 "	3.39 mm	0.05 in	1.27 mm	Solder	Phosphor Bronze	Gold			Board Guide Pick and Place
