SFR-1-0-SP

Unknown

TE Connectivity Aerospace, Defense and Marine

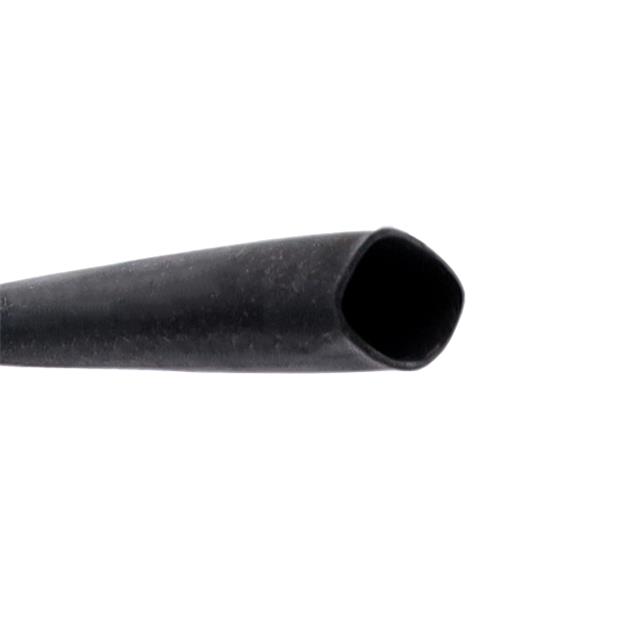

HEATSHRINK 1" BLACK FEET

Search across all available documentation for this part.

Unknown

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK 1" BLACK FEET

Technical Specifications

Parameters and characteristics for this part

Specification	SFR-1-0-SP

Color	Black
Features	Fluid Resistant, Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered [diameter]	0.57 in
Inner Diameter - Recovered [diameter]	14.48 mm
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Length	Enter Number of Feet in Order Quantity
Operating Temperature [Max]	180 °C
Operating Temperature [Min]	-103 °F
Recovered Wall Thickness	1.78 mm
Recovered Wall Thickness	0.07 "
Shrink Temperature	135 C
Shrinkage Ratio [Max]	1.75
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

HEATSHRINK 1" BLACK FEET

Part	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Recovered Wall Thickness	Recovered Wall Thickness	Features	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
TE Connectivity Aerospace, Defense and Marine SFR-1-0-SP	Tubing, Flexible	1 in	25.4 mm	135 C	-103 °F	180 °C	1.78 mm	0.07 "	Abrasion Resistant, Flame Retardant, Fluid Resistant	1	1.75	Black	Enter Number of Feet in Order Quantity	0.57 in	14.48 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 1.75 to 1 Black Enter Number of Feet in Order Quantity
