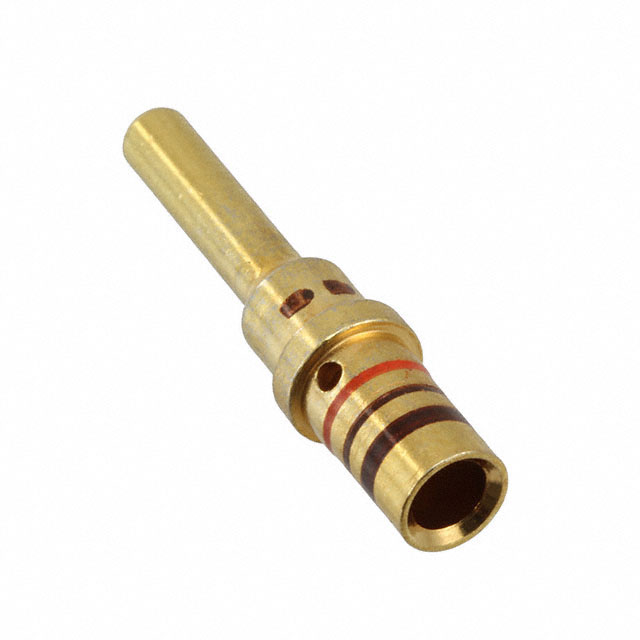

M39029/4-113
ActiveAmphenol Aerospace Operations
CONTACT PIN 12-14AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
M39029/4-113
ActiveAmphenol Aerospace Operations
CONTACT PIN 12-14AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/4-113 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 12 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Power, Machined |
| Wire Gauge or Range - AWG [Max] | 14 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm˛ [Max] | 3 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 2 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.57 | |
| 1 | $ 1.68 | |||
| 10 | $ 1.28 | |||
| 10 | $ 1.36 | |||
| 25 | $ 1.15 | |||
| 25 | $ 1.31 | |||
| 50 | $ 1.07 | |||
| 50 | $ 1.28 | |||
| 100 | $ 0.99 | |||
| 100 | $ 1.22 | |||
| 250 | $ 0.90 | |||
| 250 | $ 1.10 | |||
| 500 | $ 1.02 | |||
Description
General part information
M39029/4 Series
Pin Contact 12-14 AWG Size 12 Crimp Gold
Documents
Technical documentation and resources
No documents available
