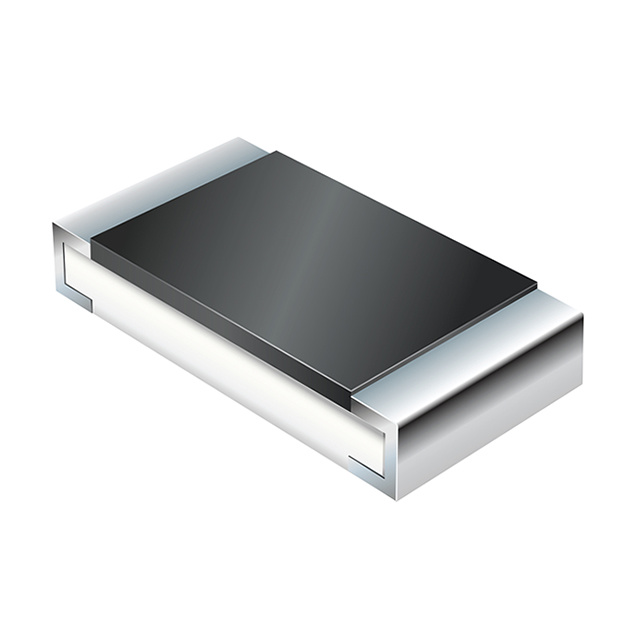

CRF1206-FZ-R025ELF

Active

Bourns Inc.

RESMETALSTRIP 1206 R025 1% 1W TC50 /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

RESMETALSTRIP 1206 R025 1% 1W TC50 /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	CRF1206-FZ-R025ELF

Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense, Moisture Resistant
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Number of Terminations	2
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Power (Watts)	1 W
Ratings	AEC-Q200
Resistance	25 mOhms
Size / Dimension [x]	0.126 in
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.065 in
Size / Dimension [y]	1.65 mm
Supplier Device Package	1206
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

Part	Composition	Power (Watts)	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Supplier Device Package	Number of Terminations	Features	Resistance	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient
Bourns Inc. CRF1206-FZ-R025ELF	Metal Element	1 W	1 %	170 °C	-55 °C	1206 (3216 Metric)	1206	2	Automotive AEC-Q200 Current Sense Moisture Resistant	25 mOhms	AEC-Q200	0.065 in	1.65 mm	0.126 in	3.2 mm	0.8 mm	0.031 "	50 ppm/°C
Bourns Inc. CRF1206-FZ-R010ELF	Metal Element	1 W	1 %	170 °C	-55 °C	1206 (3216 Metric)	1206	2	Automotive AEC-Q200 Current Sense Moisture Resistant	10 mOhms	AEC-Q200	0.065 in	1.65 mm	0.126 in	3.2 mm	0.8 mm	0.031 "	50 ppm/°C
Bourns Inc. CRF1206-FX-R010ELF	Metal Element	1 W	1 %	170 °C	-55 °C	1206 (3216 Metric)	1206	2	Automotive AEC-Q200 Current Sense Moisture Resistant	10 mOhms	AEC-Q200	0.065 in	1.65 mm	0.126 in	3.2 mm	0.8 mm	0.031 "	100 ppm/°C
Bourns Inc. CRF1206-FX-R002ELF	Metal Element	1 W	1 %	170 °C	-55 °C	1206 (3216 Metric)	1206	2	Automotive AEC-Q200 Current Sense Moisture Resistant	2 mOhms	AEC-Q200	0.065 in	1.65 mm	0.126 in	3.2 mm	0.8 mm	0.031 "	100 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 mOhms ±1% 1W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
