1401045002KE

Active

METZ CONNECT USA Inc.

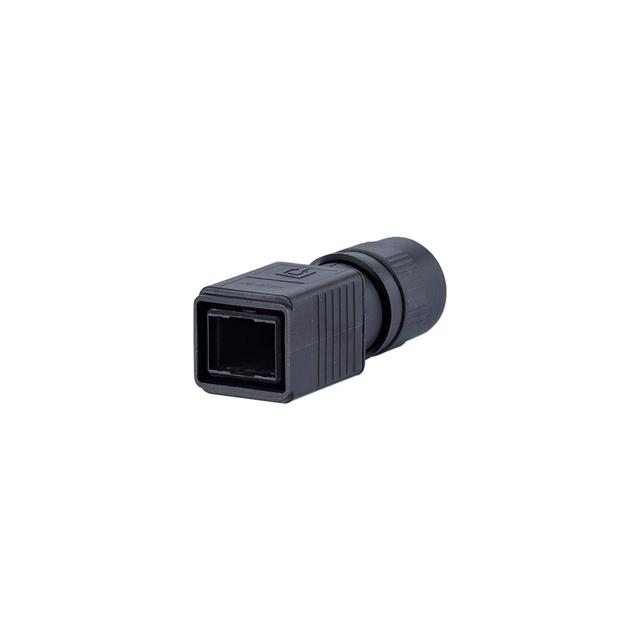

INDUSTRY IP67 V4 PLUG HOUSING

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

INDUSTRY IP67 V4 PLUG HOUSING

Technical Specifications

Parameters and characteristics for this part

Specification	1401045002KE

Color	Black
Connector Type	Housing for Prewired RJ45 Cordset
Fastening Type	Push-Pull
Features	Strain Relief
Housing Material	Polyamide (PA), Nylon
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	750
Mounting Type	Free Hanging (In-Line)
Note	Plug Not Provided
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded

INDUSTRY IP67 V4 PLUG HOUSING

Part	Color	Mating Cycles	Note	Mounting Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Features	Fastening Type	Connector Type	Housing Material	Shielding
METZ CONNECT USA Inc. 1401045002KE	Black	750	Plug Not Provided	Free Hanging (In-Line)	IP67 - Dust Tight, Waterproof	-40 °C	70 °C	Strain Relief	Push-Pull	Housing for Prewired RJ45 Cordset	Polyamide (PA), Nylon	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Housing Housing for Prewired RJ45 Cordset Modular Connector Push-Pull Black
