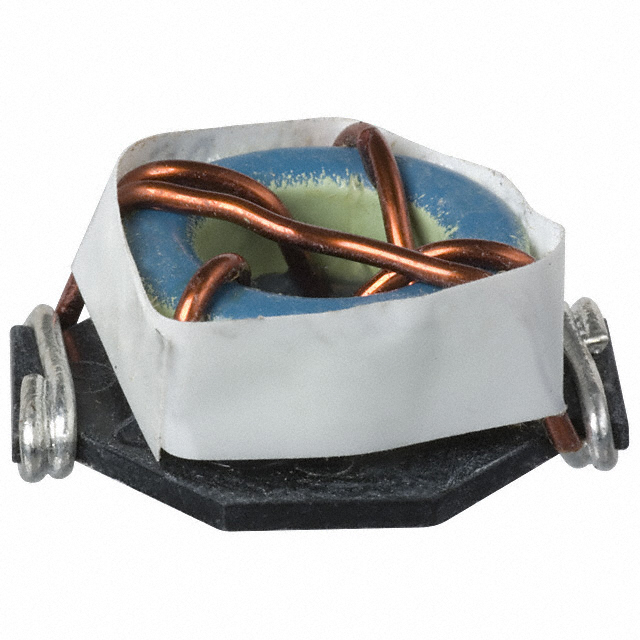

PM2110-1R0M-RC

Active

Bourns Inc.

FIXED IND 1UH 22.7A 2 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM2110-1R0M-RC

Active

Bourns Inc.

FIXED IND 1UH 22.7A 2 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM2110-1R0M-RC

Current Rating (Amps)	22.7 A
DC Resistance (DCR)	2 mOhm
Height - Seated (Max) [Max] [z]	0.57 in
Height - Seated (Max) [Max] [z]	14.48 mm
Inductance	1 µH
Material - Core	Iron
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Shielding	Unshielded
Size / Dimension [x]	1.201 in
Size / Dimension [x]	30.5 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Tolerance	20 %
Type	Toroidal

PM2110 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Mounting Type	Shielding	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Inductance	DC Resistance (DCR) [Max]	Type	Material - Core	DC Resistance (DCR)
Bourns Inc. PM2110-101K	105 ░C	-55 °C	10 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.62 in	15.75 mm	5.4 A	100 µH	32 mOhm	Toroidal	Iron
Bourns Inc. PM2110-271K-RC	105 ░C	-55 °C	10 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.6 in	15.24 mm	3.4 A	270 µH		Toroidal	Iron	82 mOhm
Bourns Inc. PM2110-1R0M-RC	105 ░C	-55 °C	20 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.57 in	14.48 mm	22.7 A	1 µH		Toroidal	Iron	2 mOhm
Bourns Inc. PM2110-331K-RC	105 ░C	-55 °C	10 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.6 in	15.24 mm	3.2 A	330 µH	90 mOhm	Toroidal	Iron
Bourns Inc. PM2110-391K-RC	105 ░C	-55 °C	10 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.6 in	15.24 mm	3.1 A	390 µH		Toroidal	Iron
Bourns Inc. PM2110-6R8M-RC	105 ░C	-55 °C	20 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.57 in	14.48 mm	13.1 A	6.8 µH	5 mOhm	Toroidal	Iron
Bourns Inc. PM2110-221K-RC	105 ░C	-55 °C	10 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.6 in	15.24 mm	3.5 A	220 µH	74 mOhm	Toroidal	Iron
Bourns Inc. PM2110-180K-RC	105 ░C	-55 °C	10 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.57 in	14.48 mm	10.2 A	18 µH	9 mOhm	Toroidal	Iron
Bourns Inc. PM2110-330K-RC	105 ░C	-55 °C	10 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.52 "	13.21 mm	7 A	33 µH		Toroidal	Iron	19 mOhm
Bourns Inc. PM2110-102K-RC	105 ░C	-55 °C	10 %	Surface Mount	Unshielded	Nonstandard	25.4 mm	25.4 mm	1.201 in	30.5 mm	0.6 in	15.24 mm	1.9 A	1 mH	244 mOhm	Toroidal	Iron

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.94
		10	$ 1.65
		25	$ 1.52
		63	$ 1.36
		126	$ 1.14

Description

General part information

PM2110 Series

1 µH Unshielded Toroidal Inductor 22.7 A 2mOhm Max Nonstandard
