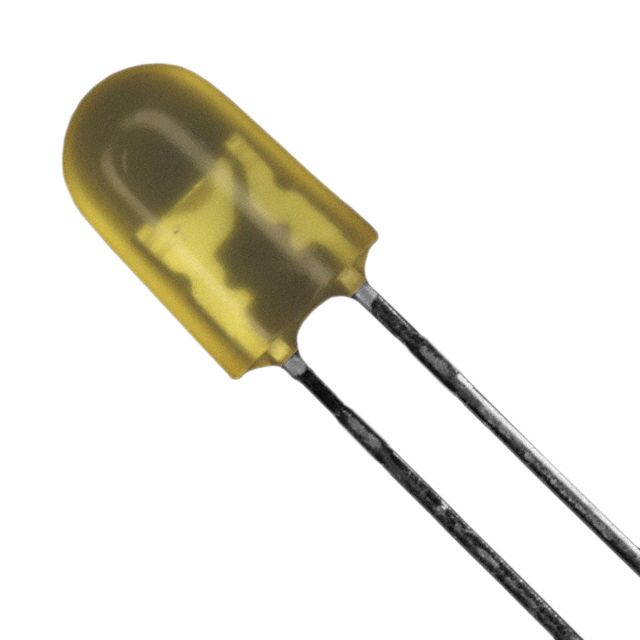

C566D-AFE-CV0X0252

Active

Cree LED

LED AMBER DIFFUSED 5MM OVAL T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C566D-AFE-CV0X0252

Active

Cree LED

LED AMBER DIFFUSED 5MM OVAL T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	2500	$ 0.14
		62500	$ 0.13

Description

General part information

C566D Series

Amber 591nm LED Indication - Discrete 2.1V Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C566D-AFE-CV0X0252	C566D Series

Color	Amber	Green, Blue, Amber, Red
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	9.55 - 11.9 mm
Height (Max) [Max]	7.8 mm	7.8 mm
Lens Color	Amber	Green, Blue, Amber, Red
Lens Size [x]	5.2 mm	5.2 mm
Lens Size [y]	4.6 mm	4.6 mm
Lens Style	Oval with Domed Top	Oval with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	3995 mcd	2042 - 9500 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Size / Dimension	-	5.2 mm
Size / Dimension	-	4.6 mm
Supplier Device Package	OVAL	OVAL
Supplier Device Package	-	5 mm
Supplier Device Package [custom]	5 mm	5 mm
Viewing Angle [x]	70 °	70 °
Viewing Angle [y]	30 °	30 °
Voltage - Forward (Vf) (Typ)	2.1 V	2.1 - 3.4 V
Wavelength - Dominant	591 nm	470 - 621 nm
Wavelength - Dominant	-	527 nm

C566D Series

LED GREEN DIFFUSED 5MM OVAL T/H

Part	Lens Color	Viewing Angle [x]	Viewing Angle [y]	Lens Size [y]	Lens Size [x]	Mounting Type	Color	Lens Style	Current - Test	Millicandela Rating	Lens Transparency	Supplier Device Package	Supplier Device Package [custom]	Wavelength - Dominant [custom]	Height (Max) [Max] [z]	Package / Case	Voltage - Forward (Vf) (Typ)	Configuration	Height (Max) [Max]	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package [diameter]
Cree LED C566D-GFF-CX14Q7S1	Green	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Green	Oval with Domed Top	20 mA	5605 mcd	Diffused	OVAL	5 mm	527 nm	11.9 mm	Radial	3.4 V	Standard
Cree LED C566D-BFE-CU34Q4S2	Blue	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Blue	Oval with Domed Top	20 mA	2412 mcd	Diffused	OVAL	5 mm			Radial	3.4 V	Standard	7.8 mm	470 nm
Cree LED C566D-BFE-CU14Q4S2	Blue	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Blue	Oval with Domed Top	20 mA	2042 mcd	Diffused	OVAL	5 mm			Radial	3.4 V	Standard	7.8 mm	470 nm
Cree LED C566D-GFE-CY14Q8S1	Green	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Green	Oval with Domed Top	20 mA	7980 mcd	Diffused	OVAL	5 mm	527 nm		Radial	3.4 V	Standard	7.8 mm
Cree LED C566D-AFE-CV0X0252	Amber	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Amber	Oval with Domed Top	20 mA	3995 mcd	Diffused	OVAL	5 mm			Radial	2.1 V	Standard	7.8 mm	591 nm
Cree LED C566D-AFE-CV14Q341	Amber	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Amber	Oval with Domed Top	20 mA	2860 mcd	Diffused	OVAL	5 mm			Radial	2.1 V	Standard	7.8 mm	591 nm
Cree LED C566D-RFE-CV0X0BB1	Red	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Red	Oval with Domed Top	20 mA	3995 mcd	Diffused	OVAL	5 mm			Radial	2.1 V	Standard	7.8 mm	621 nm
Cree LED C566D-GFF-CY34Q8S1				4.6 mm	5.2 mm	Through Hole	Green	Oval with Domed Top	20 mA	9500 mcd	Diffused				9.55 mm	Radial	3.4 V			528 nm	5.2 mm	4.6 mm	5 mm
Cree LED C566D-BFE-CU34Q3S1	Blue	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Blue	Oval with Domed Top	20 mA	2412 mcd	Diffused	OVAL	5 mm			Radial	3.4 V	Standard	7.8 mm	470 nm
Cree LED C566D-GFF-CX0Z0791	Green	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Green	Oval with Domed Top	20 mA	8090 mcd	Diffused	OVAL	5 mm	527 nm	11.9 mm	Radial	3.4 V	Standard
