C566D-RFE-CV0X0BB1

Active

Cree LED

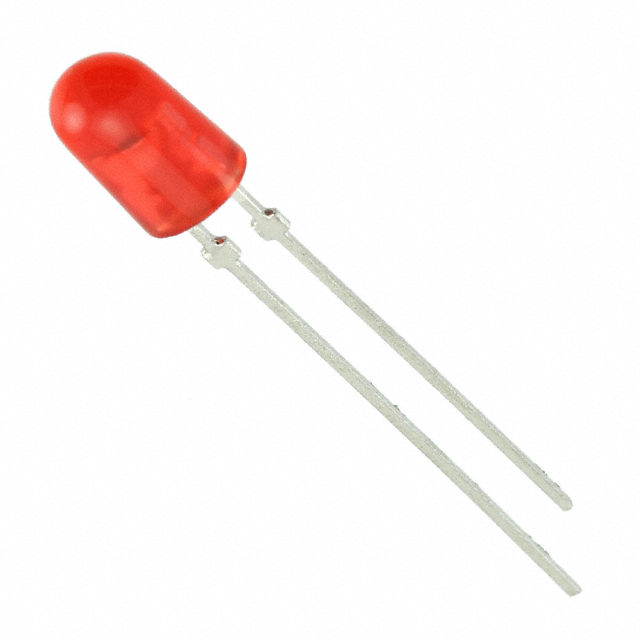

LED RED DIFFUSED 5MM OVAL T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C566D-RFE-CV0X0BB1

Active

Cree LED

LED RED DIFFUSED 5MM OVAL T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C566D-RFE-CV0X0BB1	C566D Series

Color	Red	Green, Blue, Amber, Red
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	9.55 - 11.9 mm
Height (Max) [Max]	7.8 mm	7.8 mm
Lens Color	Red	Green, Blue, Amber, Red
Lens Size [x]	5.2 mm	5.2 mm
Lens Size [y]	4.6 mm	4.6 mm
Lens Style	Oval with Domed Top	Oval with Domed Top
Lens Transparency	Diffused	Diffused
Millicandela Rating	3995 mcd	2042 - 9500 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Size / Dimension	-	5.2 mm
Size / Dimension	-	4.6 mm
Supplier Device Package	OVAL	OVAL
Supplier Device Package	-	5 mm
Supplier Device Package [custom]	5 mm	5 mm
Viewing Angle [x]	70 °	70 °
Viewing Angle [y]	30 °	30 °
Voltage - Forward (Vf) (Typ)	2.1 V	2.1 - 3.4 V
Wavelength - Dominant	621 nm	470 - 621 nm
Wavelength - Dominant	-	527 nm

C566D Series

LED GREEN DIFFUSED 5MM OVAL T/H

Part	Lens Color	Viewing Angle [x]	Viewing Angle [y]	Lens Size [y]	Lens Size [x]	Mounting Type	Color	Lens Style	Current - Test	Millicandela Rating	Lens Transparency	Supplier Device Package	Supplier Device Package [custom]	Wavelength - Dominant [custom]	Height (Max) [Max] [z]	Package / Case	Voltage - Forward (Vf) (Typ)	Configuration	Height (Max) [Max]	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package [diameter]
Cree LED C566D-GFF-CX14Q7S1	Green	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Green	Oval with Domed Top	20 mA	5605 mcd	Diffused	OVAL	5 mm	527 nm	11.9 mm	Radial	3.4 V	Standard
Cree LED C566D-BFE-CU34Q4S2	Blue	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Blue	Oval with Domed Top	20 mA	2412 mcd	Diffused	OVAL	5 mm			Radial	3.4 V	Standard	7.8 mm	470 nm
Cree LED C566D-BFE-CU14Q4S2	Blue	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Blue	Oval with Domed Top	20 mA	2042 mcd	Diffused	OVAL	5 mm			Radial	3.4 V	Standard	7.8 mm	470 nm
Cree LED C566D-GFE-CY14Q8S1	Green	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Green	Oval with Domed Top	20 mA	7980 mcd	Diffused	OVAL	5 mm	527 nm		Radial	3.4 V	Standard	7.8 mm
Cree LED C566D-AFE-CV0X0252	Amber	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Amber	Oval with Domed Top	20 mA	3995 mcd	Diffused	OVAL	5 mm			Radial	2.1 V	Standard	7.8 mm	591 nm
Cree LED C566D-AFE-CV14Q341	Amber	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Amber	Oval with Domed Top	20 mA	2860 mcd	Diffused	OVAL	5 mm			Radial	2.1 V	Standard	7.8 mm	591 nm
Cree LED C566D-RFE-CV0X0BB1	Red	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Red	Oval with Domed Top	20 mA	3995 mcd	Diffused	OVAL	5 mm			Radial	2.1 V	Standard	7.8 mm	621 nm
Cree LED C566D-GFF-CY34Q8S1				4.6 mm	5.2 mm	Through Hole	Green	Oval with Domed Top	20 mA	9500 mcd	Diffused				9.55 mm	Radial	3.4 V			528 nm	5.2 mm	4.6 mm	5 mm
Cree LED C566D-BFE-CU34Q3S1	Blue	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Blue	Oval with Domed Top	20 mA	2412 mcd	Diffused	OVAL	5 mm			Radial	3.4 V	Standard	7.8 mm	470 nm
Cree LED C566D-GFF-CX0Z0791	Green	70 °	30 °	4.6 mm	5.2 mm	Through Hole	Green	Oval with Domed Top	20 mA	8090 mcd	Diffused	OVAL	5 mm	527 nm	11.9 mm	Radial	3.4 V	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.18
		10	$ 0.16
		100	$ 0.15
		1000	$ 0.14
		50000	$ 0.13

Description

General part information

C566D Series

Red 621nm LED Indication - Discrete 2.1V Radial
