3024W7PCM99A10X

Active

Amphenol CONEC

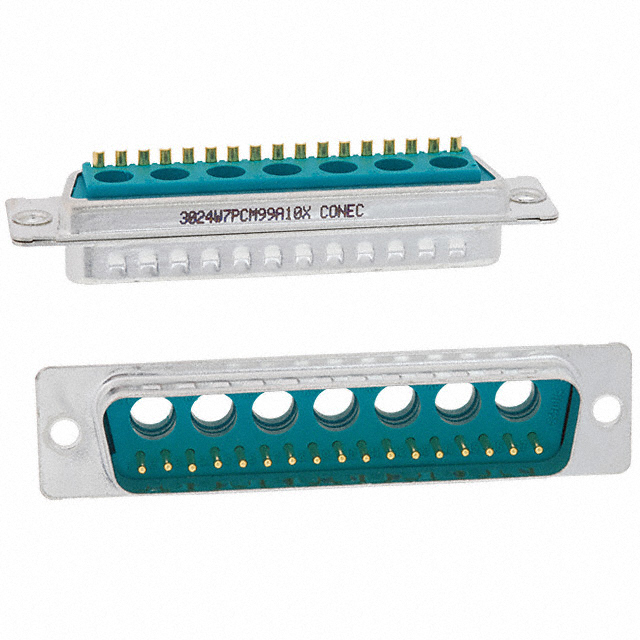

CONN D-SUB PLUG 24POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 24POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	3024W7PCM99A10X

Color	Green
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	17
Number of Positions [custom]	7
Number of Positions [custom]	24
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D) - 24W7

Part	Connector Type	Note	Dielectric Material	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Finish Thickness	Shell Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Shell Size, Connector Layout	Color	Flange Feature	Mounting Type	Connector Style	Contact Type	Material Flammability Rating	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Current Rating (Amps)	Termination
Amphenol CONEC 3024W7PXK99A10X	Plug for Male Contacts	Contacts Not Included	Polybutylene Terephthalate (PBT) Polyester	2	-55 °C	125 °C	Grounding Indents	320 µin	8.13 µm	17	7	24	5 (DD D) - 24W7	Black	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Combo D-Sub	Power Signal and Coax
Amphenol CONEC 3024W7PCM99A10X	Male Pins Plug		Polybutylene Terephthalate (PBT) Glass Filled	2	-55 °C	125 °C	Grounding Indents			17	7	24	5 (DD D) - 24W7	Green	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Combo D-Sub		UL94 V-0	Gold	0.76 Ám	30 Áin	Copper Alloy	5 A
Amphenol CONEC 3024W7PAR71AA0X	Male Pins Plug
Amphenol CONEC 3024W7PAR99F40X	Male Pins Plug			2			Board Lock Grounding Indents			17	7	24	5 (DD D) - 24W7		4-40	Through Hole	Combo D-Sub								Solder
Amphenol CONEC 3024W7PAR68E20X	Male Pins Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24 (17 + 7 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
