Technical Specifications
Parameters and characteristics for this part
| Specification | M4T32-BR12SH6 |
|---|---|
| Battery Chemistry | Lithium |
| Capacity | 120 mAh |
| Frequency | 32.768 kHz |
| Load Capacitance | 12.5 pF |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Battery and Crystal |
| Voltage - Rated | 2.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.26 | |
| 23 | $ 10.43 | |||
| 46 | $ 10.13 | |||
| 115 | $ 8.92 | |||
| 253 | $ 8.48 | |||
| 506 | $ 8.39 | |||
| 1012 | $ 8.11 | |||
Description
General part information
M4T32-BR12SH Series

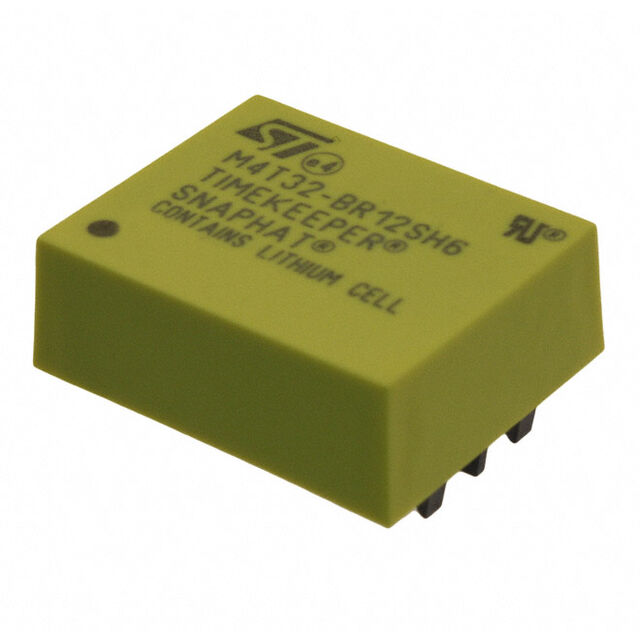

The M4Txx-BR12SH SNAPHAT®top is a detachable lithium power source for ST’s serial real-time clock and non-volatile TIMEKEEPER®surface-mount SOIC package (28- and 44-pin).
The SNAPHAT top contains both the battery and crystal and is designed to be "snapped on" after the SOIC is surface mounted on the PC board. Thus the two-piece solution prevents the battery and crystal from being exposed to the high temperatures of the surface-mount process.
