APCL86P12
ActiveAMPHENOL PCD

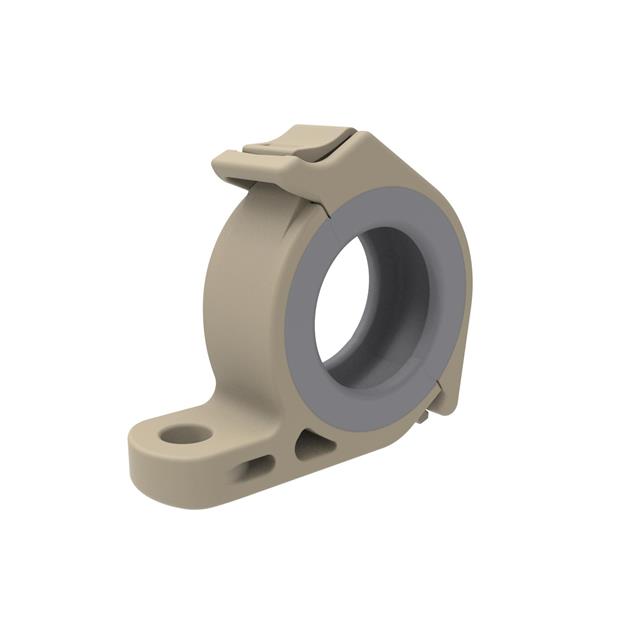

SNAP P-CLAMP WIRE BUNDLE DIA .75
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APCL86P12
ActiveAMPHENOL PCD
SNAP P-CLAMP WIRE BUNDLE DIA .75
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | APCL86P12 | APCL86 Series |
|---|---|---|
| Bundle Center to Mounting Center | 0.845 in | 0.529 - 1.187 in |
| Bundle Center to Mounting Center | 21.46 mm | 13.44 - 30.15 mm |
| Bundle Center to Mounting Center | - | 0.592 - 31.73 in |
| Bundle Center to Mounting Center | - | 15.04 mm |
| Bundle Center to Mounting Center | - | 0.498 - 1.249 in |
| Bundle Center to Mounting Center | - | 28.55 mm |
| Bundle Center to Mounting Center | - | 1.124 in |
| Color | Beige | Beige |
| Height | - | 20.55 mm |
| Height | - | 0.809 in |
| Height [z] | 1.405 in | 0.671 - 2.134 in |
| Height [z] | 35.69 mm | 17.04 - 54.2 mm |
| Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Fastener | Fastener |
| Opening Size | - | 5.56 - 30.96 mm |
| Opening Size | - | 0.219 - 1.219 in |
| Opening Size | - | 0.344 - 1.469 in |
| Opening Size | - | 8.74 - 37.31 mm |
| Opening Size | - | 0.094 - 1.094 in |
| Opening Size | - | 2.39 - 27.79 mm |
| Opening Size [diameter] | 18.26 mm | 18.26 mm |
| Opening Size [diameter] | 0.719 in | 0.719 in |
| Panel Hole Size | 5.08 mm | 5.08 mm |
| Panel Hole Size | 0.2 in | 0.2 in |
| Type | Clamp, P-Type | Clamp, P-Type |
| Type Attributes | Hinged, Cushioned | Hinged, Cushioned |
| Width | - | 0.45 in |
| Width | - | 11.43 mm |
APCL86 Series
SNAP P-CLAMP WIRE BUNDLE DIA .25
| Part | Bundle Center to Mounting Center | Bundle Center to Mounting Center | Type Attributes | Width [y] | Width [y] | Color | Opening Size [custom] | Opening Size [custom] | Panel Hole Size | Panel Hole Size | Mounting Type | Type | Height [z] | Height [z] | Material | Opening Size [z] | Opening Size [z] | Bundle Center to Mounting Center [x] | Bundle Center to Mounting Center [x] | Opening Size [diameter] | Opening Size [diameter] | Opening Size | Opening Size | Bundle Center to Mounting Center [x] | Height [diameter] | Height [diameter] | Bundle Center to Mounting Center [custom] | Bundle Center to Mounting Center [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL PCD APCL86P04 | 13.44 mm | 0.529 in | Cushioned, Hinged | 0.45 in | 11.43 mm | Beige | 5.56 mm | 0.219 in | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 0.73 in | 18.54 mm | Polyetheretherketone (PEEK) | |||||||||||||
AMPHENOL PCD APCL86P16 | 24.64 mm | 0.97 in | Cushioned, Hinged | Beige | 24.61 mm | 0.969 in | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 1.64 in | 41.66 mm | Polyetheretherketone (PEEK) | |||||||||||||||
AMPHENOL PCD APCL86P06 | Cushioned, Hinged | 0.45 in | 11.43 mm | Beige | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 0.868 in | 22.05 mm | Polyetheretherketone (PEEK) | 0.344 in | 8.74 mm | 0.592 in | 15.04 mm | |||||||||||||
AMPHENOL PCD APCL86P12 | 21.46 mm | 0.845 in | Cushioned, Hinged | Beige | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 1.405 in | 35.69 mm | Polyetheretherketone (PEEK) | 18.26 mm | 0.719 in | |||||||||||||||
AMPHENOL PCD APCL86P02 | Cushioned, Hinged | 0.45 in | 11.43 mm | Beige | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 0.671 in | 17.04 mm | Polyetheretherketone (PEEK) | 12.65 mm | 0.094 in | 2.39 mm | 0.498 in | |||||||||||||
AMPHENOL PCD APCL86P24 | Cushioned, Hinged | Beige | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 2.134 in | 54.2 mm | Polyetheretherketone (PEEK) | 1.469 in | 37.31 mm | 31.73 mm | 1.249 in | |||||||||||||||
AMPHENOL PCD APCL86P09 | Cushioned, Hinged | Beige | 13.5 mm | 0.531 in | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 1.047 in | 26.59 mm | Polyetheretherketone (PEEK) | 19.1 mm | 0.752 in | |||||||||||||||
AMPHENOL PCD APCL86P10 | 19.89 mm | 0.783 in | Cushioned, Hinged | Beige | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 1.271 in | 32.28 mm | Polyetheretherketone (PEEK) | 0.594 in | 15.09 mm | |||||||||||||||
AMPHENOL PCD APCL86P08 | Cushioned, Hinged | Beige | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 0.99 in | 25.15 mm | Polyetheretherketone (PEEK) | 0.469 in | 11.91 mm | 16.61 mm | 0.654 in | |||||||||||||||
AMPHENOL PCD APCL86P18 | 26.98 mm | 1.062 in | Cushioned, Hinged | Beige | 5.08 mm | 0.2 in | Fastener | Clamp, P-Type | 1.783 in | 45.3 mm | Polyetheretherketone (PEEK) | 1.094 in | 27.79 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.82 | |
| 10 | $ 62.24 | |||
| 25 | $ 59.84 | |||
| 50 | $ 57.85 | |||
| 100 | $ 54.66 | |||
Description
General part information
APCL86 Series
Cable Clamp, P-Type Beige Fastener 0.719" (18.26mm)
