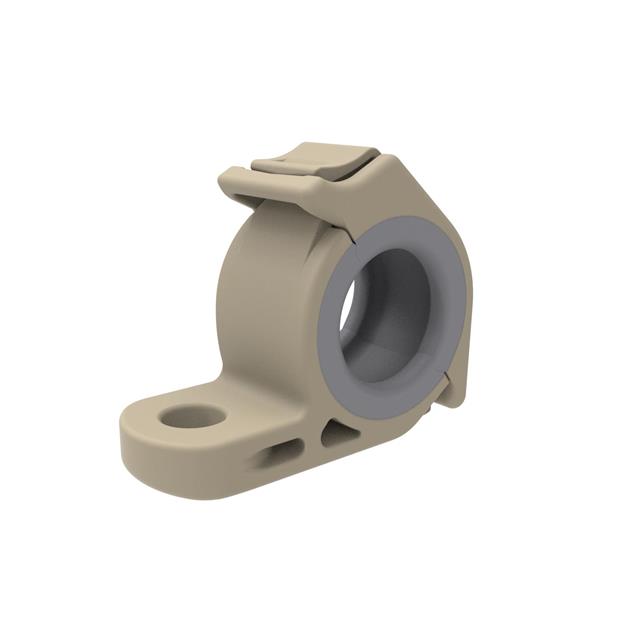

APCL86P08

Active

AMPHENOL PCD

SNAP P-CLAMP WIRE BUNDLE DIA .50

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APCL86P08

Active

AMPHENOL PCD

SNAP P-CLAMP WIRE BUNDLE DIA .50

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	APCL86P08	APCL86 Series

Bundle Center to Mounting Center	-	13.44 - 30.15 mm
Bundle Center to Mounting Center	-	0.529 - 1.187 in
Bundle Center to Mounting Center	-	15.04 mm
Bundle Center to Mounting Center	-	28.55 mm
Bundle Center to Mounting Center	-	1.124 in
Bundle Center to Mounting Center [x]	16.61 mm	0.592 - 31.73 in
Bundle Center to Mounting Center [x]	0.654 in	0.498 - 1.249 in
Color	Beige	Beige
Height	-	20.55 mm
Height	-	0.809 in
Height [z]	25.15 mm	17.04 - 54.2 mm
Height [z]	0.99 in	0.671 - 2.134 in
Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Fastener	Fastener
Opening Size	-	5.56 - 30.96 mm
Opening Size	-	0.219 - 1.219 in
Opening Size	-	18.26 mm
Opening Size	-	0.719 in
Opening Size	-	0.094 - 1.094 in
Opening Size	-	2.39 - 27.79 mm
Opening Size [z]	11.91 mm	8.74 - 37.31 mm
Opening Size [z]	0.469 in	0.344 - 1.469 in
Panel Hole Size	5.08 mm	5.08 mm
Panel Hole Size	0.2 in	0.2 in
Type	Clamp, P-Type	Clamp, P-Type
Type Attributes	Hinged, Cushioned	Hinged, Cushioned
Width	-	0.45 in
Width	-	11.43 mm

APCL86 Series

SNAP P-CLAMP WIRE BUNDLE DIA .25

Part	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Type Attributes	Width [y]	Width [y]	Color	Opening Size [custom]	Opening Size [custom]	Panel Hole Size	Panel Hole Size	Mounting Type	Type	Height [z]	Height [z]	Material	Opening Size [z]	Opening Size [z]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Opening Size [diameter]	Opening Size [diameter]	Opening Size	Opening Size	Bundle Center to Mounting Center [x]
AMPHENOL PCD APCL86P04	13.44 mm	0.529 in	Cushioned, Hinged	0.45 in	11.43 mm	Beige	5.56 mm	0.219 in	5.08 mm	0.2 in	Fastener	Clamp, P-Type	0.73 in	18.54 mm	Polyetheretherketone (PEEK)
AMPHENOL PCD APCL86P16	24.64 mm	0.97 in	Cushioned, Hinged			Beige	24.61 mm	0.969 in	5.08 mm	0.2 in	Fastener	Clamp, P-Type	1.64 in	41.66 mm	Polyetheretherketone (PEEK)
AMPHENOL PCD APCL86P06			Cushioned, Hinged	0.45 in	11.43 mm	Beige			5.08 mm	0.2 in	Fastener	Clamp, P-Type	0.868 in	22.05 mm	Polyetheretherketone (PEEK)	0.344 in	8.74 mm	0.592 in	15.04 mm
AMPHENOL PCD APCL86P12	21.46 mm	0.845 in	Cushioned, Hinged			Beige			5.08 mm	0.2 in	Fastener	Clamp, P-Type	1.405 in	35.69 mm	Polyetheretherketone (PEEK)					18.26 mm	0.719 in
AMPHENOL PCD APCL86P02			Cushioned, Hinged	0.45 in	11.43 mm	Beige			5.08 mm	0.2 in	Fastener	Clamp, P-Type	0.671 in	17.04 mm	Polyetheretherketone (PEEK)			12.65 mm				0.094 in	2.39 mm	0.498 in
AMPHENOL PCD APCL86P24			Cushioned, Hinged			Beige			5.08 mm	0.2 in	Fastener	Clamp, P-Type	2.134 in	54.2 mm	Polyetheretherketone (PEEK)	1.469 in	37.31 mm	31.73 mm						1.249 in
AMPHENOL PCD APCL86P09			Cushioned, Hinged			Beige	13.5 mm	0.531 in	5.08 mm	0.2 in	Fastener	Clamp, P-Type	1.047 in	26.59 mm	Polyetheretherketone (PEEK)			19.1 mm						0.752 in
AMPHENOL PCD APCL86P10	19.89 mm	0.783 in	Cushioned, Hinged			Beige			5.08 mm	0.2 in	Fastener	Clamp, P-Type	1.271 in	32.28 mm	Polyetheretherketone (PEEK)	0.594 in	15.09 mm
AMPHENOL PCD APCL86P08			Cushioned, Hinged			Beige			5.08 mm	0.2 in	Fastener	Clamp, P-Type	0.99 in	25.15 mm	Polyetheretherketone (PEEK)	0.469 in	11.91 mm	16.61 mm						0.654 in
AMPHENOL PCD APCL86P18	26.98 mm	1.062 in	Cushioned, Hinged			Beige			5.08 mm	0.2 in	Fastener	Clamp, P-Type	1.783 in	45.3 mm	Polyetheretherketone (PEEK)							1.094 in	27.79 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.41
		10	$ 29.25
		25	$ 27.99
		50	$ 27.09
		100	$ 26.19
		300	$ 24.74

Description

General part information

APCL86 Series

Cable Clamp, P-Type Beige Fastener 0.469" (11.91mm)
