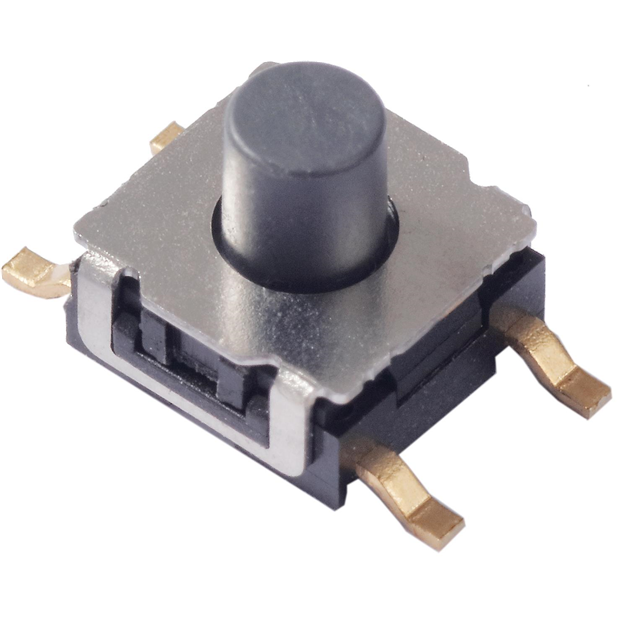

222PMVAARD

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.01A 32V

Search across all available documentation for this part.

Active

CTS Electrocomponents

SWITCH TACTILE SPST-NO 0.01A 32V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	222PMVAARD	222PMV Series

Actuator Height off PCB, Vertical [z]	5.6 mm	5.6 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.01 A, 32 VDC	0.01 - 32 A
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	200 gf	200 gf
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.2 mm	6.2 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	Gull Wing	Gull Wing

SWITCH TACTILE SPST-NO 0.01A 32V

Part	Switch Travel	Mounting Type	Actuator Type	Actuator Orientation	Switch Function	Outline [y]	Outline [x]	Contact Rating @ Voltage	Mechanical Life	Illumination	Termination Style	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Features	Actuator Height off PCB, Vertical [z]	Operating Force	Ingress Protection
CTS Electrocomponents 222PMVAARD	0.25 mm	Surface Mount	Standard	Top Actuated	Off-Mom	6.2 mm	6.2 mm	0.01 A, 32 VDC	100000 Cycles	Non-Illuminated	Gull Wing	SPST-NO	125 °C	-40 °C	Tactile Feedback	5.6 mm	200 gf	IP67 - Dust Tight, Waterproof
CTS Electrocomponents 222PMVAAR	0.25 mm	Surface Mount	Standard	Top Actuated	Off-Mom	6.2 mm	6.2 mm	0.05 A	100000 Cycles	Non-Illuminated	Gull Wing	SPST-NO	85 °C	-40 °C	Tactile Feedback	5.6 mm	200 gf	IP67 - Dust Tight, Waterproof
