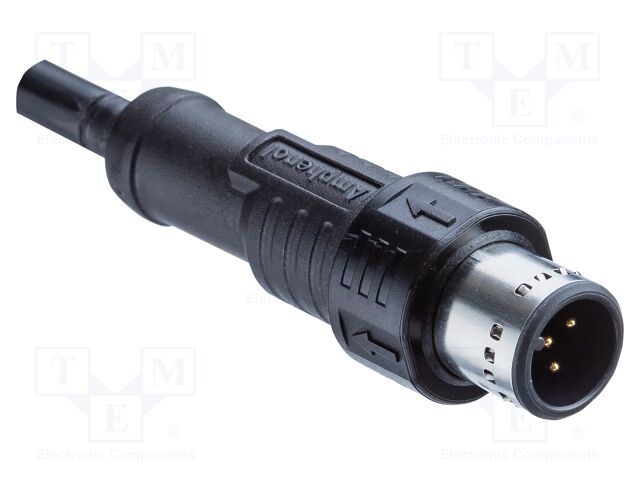

Specification	M12B-05BMMM-PL8D10

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	B
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Length	32.8 ft
Shielding	Unshielded
Usage	Industrial Environments

mpronto-12 Series

Part	Usage	Cable Type	Ingress Protection IP Rating	Ingress Protection Description	2nd Connector Type	1st Connector Number of Positions Loaded	Cable Material	1st Connector Orientation	Color	Shielding	1st Connector Gender	Assembly Configuration	1st Connector Number of Positions	1st Connector Mounting Type	Length	1st Connector Type	1st Connector Shell Size - Insert
McGill Microwave Systems M12A-05BMMM-PL8D02	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyvinyl Chloride (PVC)	A	Black	Unshielded	Male Pins	Standard	5 positions	Free Hanging (In-Line)	6.56 ft	Receptacle	M12
McGill Microwave Systems M12A-05BMMM-PL8D05	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyvinyl Chloride (PVC)	A	Black	Unshielded	Male Pins	Standard	5 positions	Free Hanging (In-Line)	16.4 ft	Receptacle	M12
McGill Microwave Systems M12A-17BMMM-PL8D10	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyvinyl Chloride (PVC)	A	Black	Unshielded	Male Pins	Standard	17 positions	Free Hanging (In-Line)	32.8 ft	Receptacle	M12
McGill Microwave Systems M12A-12BMMM-PL8B05	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyurethane (PUR)	A	Black	Unshielded	Male Pins	Standard	12 positions	Free Hanging (In-Line)	16.4 ft	Receptacle	M12
McGill Microwave Systems M12A-17BMMM-PL8B04	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyurethane (PUR)	A	Black	Unshielded	Male Pins	Standard	17 positions	Free Hanging (In-Line)	13.12 ft	Receptacle	M12
McGill Microwave Systems M12B-05BMMM-PL8D10	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyvinyl Chloride (PVC)	B	Black	Unshielded	Male Pins	Standard	5 positions	Free Hanging (In-Line)	32.8 ft	Receptacle	M12
McGill Microwave Systems M12A-17BMMM-PL8D03	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyvinyl Chloride (PVC)	A	Black	Unshielded	Male Pins	Standard	17 positions	Free Hanging (In-Line)	9.84 ft	Receptacle	M12
McGill Microwave Systems M12A-05BMMM-PL8D10	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyvinyl Chloride (PVC)	A	Black	Unshielded	Male Pins	Standard	5 positions	Free Hanging (In-Line)	32.8 ft	Receptacle	M12
McGill Microwave Systems M12A-12BMMM-PL8B10	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyurethane (PUR)	A	Black	Unshielded	Male Pins	Standard	12 positions	Free Hanging (In-Line)	32.8 ft	Receptacle	M12
McGill Microwave Systems M12A-12BMMM-PL8B04	Industrial Environments	Round	IP68	Dust Tight Waterproof	Wire Leads	All	Polyurethane (PUR)	A	Black	Unshielded	Male Pins	Standard	12 positions	Free Hanging (In-Line)	13.12 ft	Receptacle	M12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

M12B-05BMMM-PL8XXX(A).pdf

M12B-05BMMM-PL8D10 | Datasheet
